This device is mainly applied to flexible packaging (medium and small size) lithium battery in the injection of liquid after standing vacuum, hot compression package; simple secondary packaging.

200*200mm Size Hot Press Machine for Lithium Battery Cells After Winding Process

Ultrasonic metal spot welding machine for lithium ion batteries is a special device used in the manufacturing process to perform spot welding. It uses ultrasonic technology to weld two metal sheets together, forming the electrodes of the battery.

Mainly used in heating type sealing equipment on the top and side of soft packaging lithium-ion batteries. The device uses resistance heating to seal the head, so that the aluminum-plastic film can be melted under a set pressure.

Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell. The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z-shaped lamination.

Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

MT-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs. This Semi-Automatic Die Cutting machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front. High speed, high accuracy, long lifetime to make cutted electrode without burr, to get a good consistency. This model has max die dimension with 200*300mm, if need other models, please choose the MT-JD-500model with max die size up to 500*500mm.

This product is suitable for die-cutting and forming of battery positive and negative plates, as well as for die-cutting of lithium plates.

MT-MCP85 pneumatic die cutter is suitable for die-cutting of positive and negative electrodes of batteries, punching sheet type electrode by pneumatic method and can be placed in the glove box.

This equipment is mainly suitable for vacuum hot sealing of pouch cell after electrolyte filling and standing; the machine can automatically complete vacuum thermal sealing of aluminum laminated film by precisely controlling the main vacuum pumping box and pneumatic heat sealing components.

Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

MT-XJB-500 Planetary vacuum mixer is one high efficiency equipment with vacuum molding and dispersion function, suitable for the battery lab research of anode and cathode electrode slurry mixing process, as well as for the powdered and ceramic material materials mixing. Due to the fact that the stirring is completed in the vacuum state, there’s without air bubble, to improve material fillibility and model compactness and the compactness of model are improved. This Equipment can be used for Coin, Pouch and Cylindrical Cell all format in R&D level.

Can be used for a variety of chemical, biological, pharmaceutical, medical, agricultural research, environmental testing and other fields, powder, easily oxidizable substances, need to be dried in vacuum, baking, sanitize, test and so on

This slurry filter is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.

This Machine Can be used for Both Coin and Pouch Cell R&D level

MT-DG-150L Lab Roll Press Machine is a compact precision electric rolling press machine. It has dual rollers of 96 mm dia. x 150mm width and dual grade micrometre. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

Since the viscosity of battery electrode pasta/slurry plays an important role during the electrode coating on current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. Usually, the cathode slurry viscosity needs to be controlled in range of 6000-1000cp, and Anode slurry viscosity needs to be controlled in range of 1000-3000cp. MT-NDJ-5S Digital viscometer is with viscosity testing range from 10-100000cp, it can display the testing result in the screen directly without calculate. It is ideal viscosity testing equipment for lithium battery producing and lab research.

Cell Cylindrical Battery Electrode Slitting Machine

Using two or more continuous slitting processes for rolled material. The equipment is equipped with a precision knife holder, which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other functional film industries.

Semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cell. Using this machine, cathode and anode films, separated by the top and bottom separator films, are rolled up into a hollow cylinder casing for cylindrical battery applications. It is an ideal tool for the reliable and precise production of high-quality wi ndings of electrode cores.

This product is the enormously popular AC pulse tab welder, controlled by single chip microcomputer. Its capability is more stable and reliable. It is designed for producing high standard NiCr, Ni-Mh, Li batteries, used for welding negative case and tab of cylinder batteries (single pin welding).

• MT-GC650 Semi-auto grooving machine is and desktop grooving machine, It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving die. • This machine can also be used for aluminum shell capacitor uniform automatic roll groove.

The machine is configured for precise 18650 cell electrolyte filling, utilizing six main mechanisms. • The Fixture positions cells in a 5*5 layout with dowel pins, being the sole component replaced for model change. • The Electrolyte tank system (dual SUS316 tanks) manages supply, featuring automatic liquid feeding and degassing in the storage tank, monitored by level sensors and low-material alarms. • Electrolyte is dispensed by an accurate Filling pump with a precision ceramic valve (alumina core) and EPDM seals, achieving <= (+/-) 5% accuracy, adjustable by a micrometre. • The Filling mechanism uses module movement for precise nozzle positioning. • Post-filling quality is secured by Vacuum degassing (<= -90 kPa), which includes adjustable time/cycles and power-off/air-loss protection. • The entire operation is controlled by an industrial PC and PLC Control system, incorporating a dedicated temperature-control module for optimal sealing.

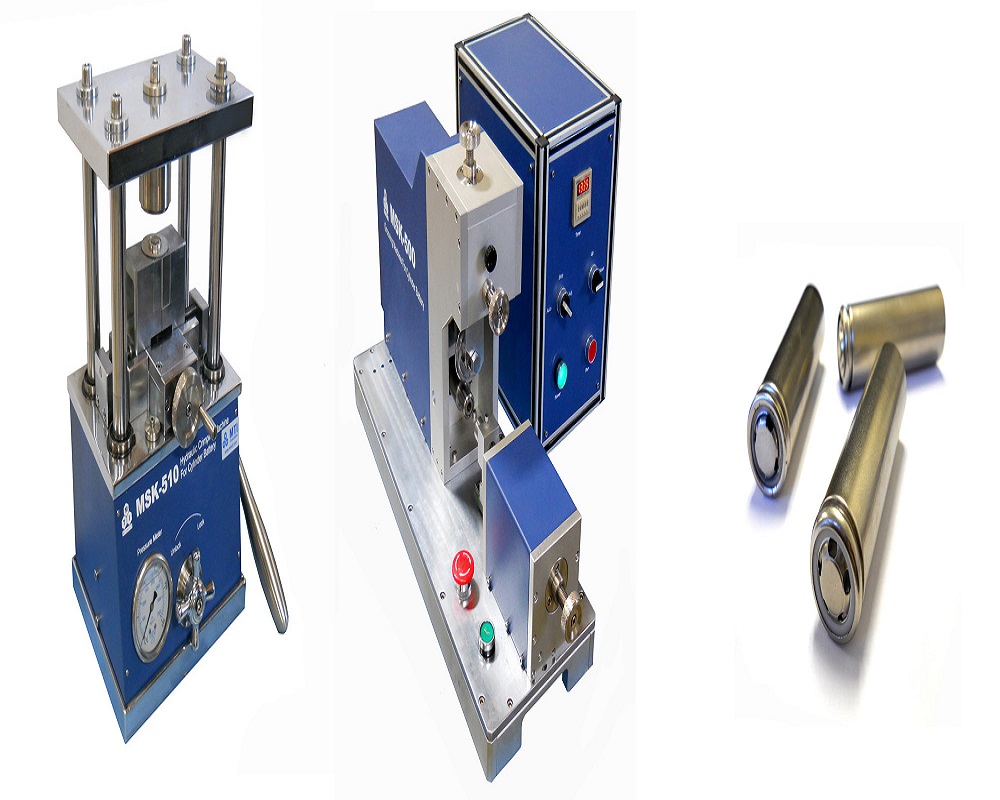

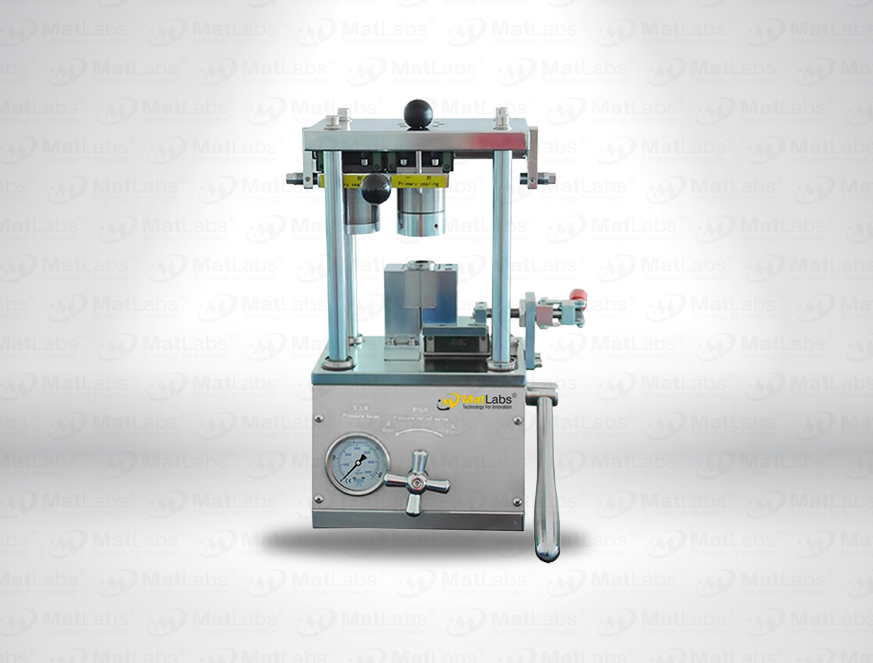

MT-CF650 is a compact hydraulic crimper for sealing all types of cylinder cases in lab R&D. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

suitable for supercapacitor, cylindrical battery, flexible packaging lithium battery pole piece winding, and the positive and negative electrode sheets and the diaphragm are wound into a battery core.

MT-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.

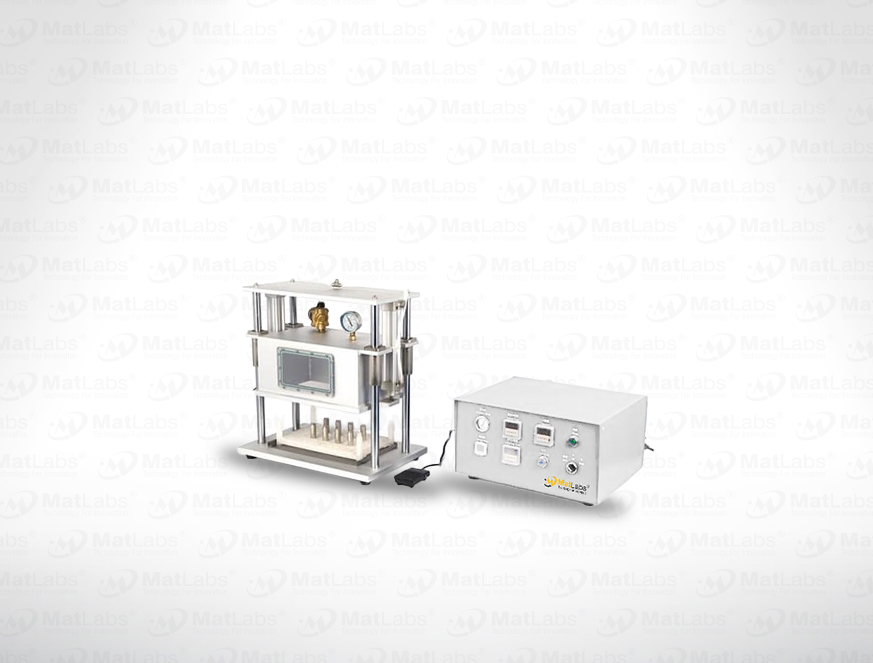

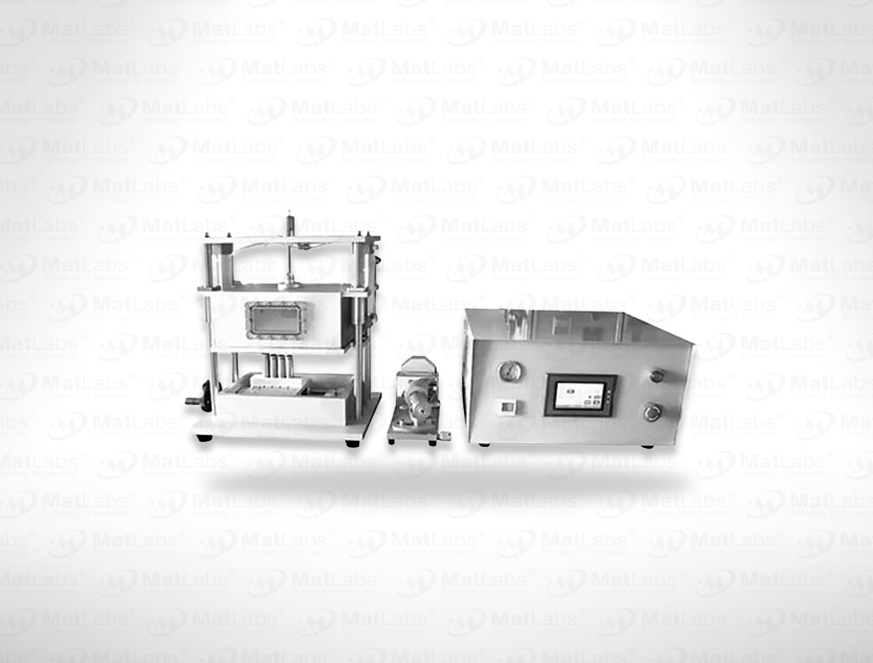

Applicable to the injection and diffusion process of battery capacitors, after vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability.

Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

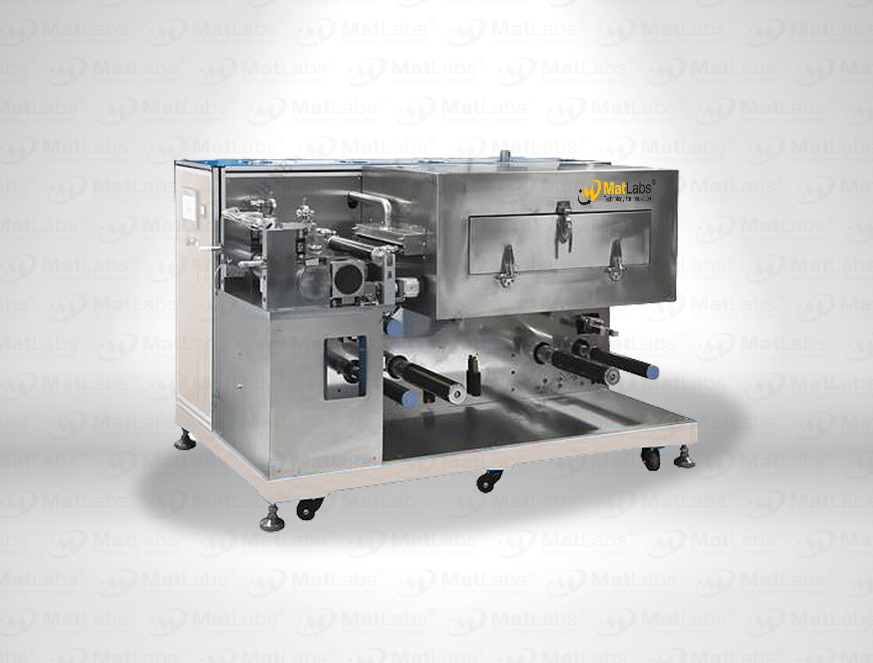

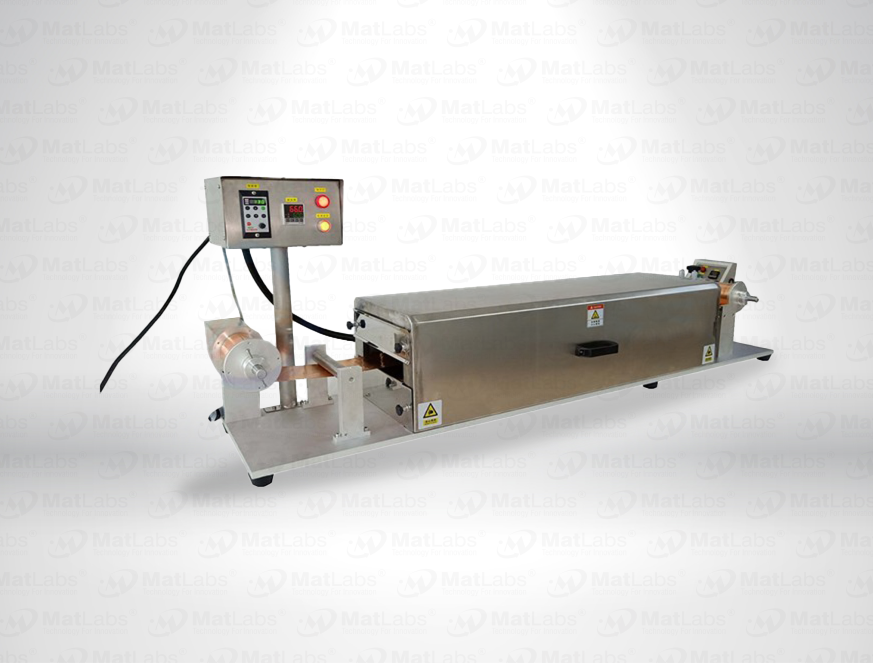

MT-TBJ-180C continuous lab coating machine is a combination assembly of high precision modular coating station mechanism, and can be used for continuous coating proofing or small production research. The machine is specially used for the continuous coating process of lithium-ion battery cathode and anode coating. It is suitable for small scale coating in universities and enterprises. It can also be used in ceramic film, crystal film, special nanometre film, etc. The fuselage is made of stainless steel, beautiful, durable, surface spray treatment, easy to operate and so on.

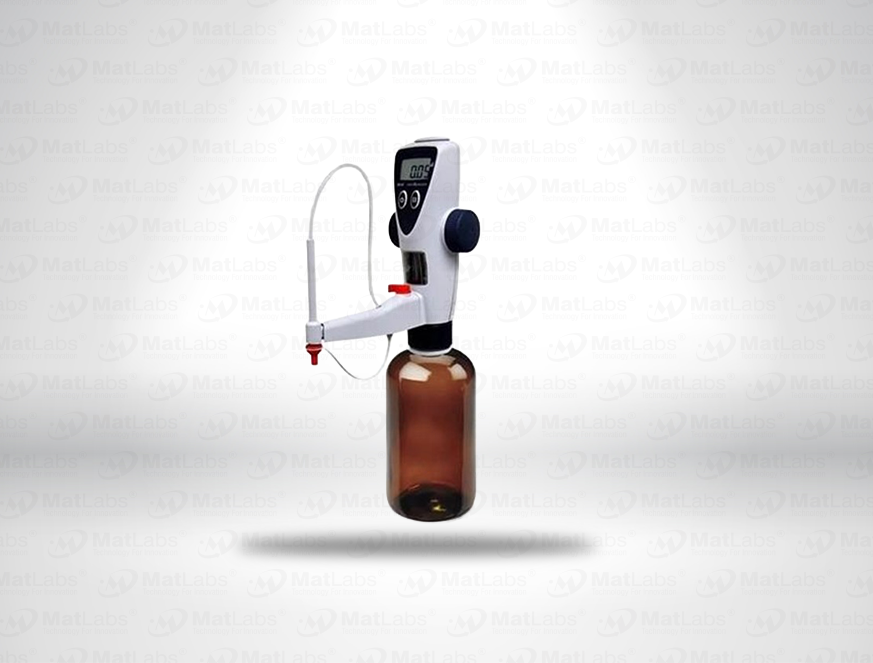

It uses a floating piston design with no seals to wear or replace, minimizing service downtime. Dispenser is accurate to 0.5% with coefficients of variation of 0.1%. Digital models feature accurate and reproducible volume settings via a mechanical digital display.

MT-XJB-500 Planetary vacuum mixer is one high efficiency equipment with vacuum molding and dispersion function, suitable for the battery lab research of anode and cathode electrode slurry mixing process, as well as for the powdered and ceramic material materials mixing. Due to the fact that the stirring is completed in the vacuum state, there’s without air bubble, to improve material fillibility and model compactness and the compactness of model are improved. This Equipment can be used for Coin, Pouch and Cylindrical Cell all format in R&D level.

Can be used for a variety of chemical, biological, pharmaceutical, medical, agricultural research, environmental testing and other fields, powder, easily oxidizable substances, need to be dried in vacuum, baking, sanitize, test and so on

This slurry filter is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.

MT-DG-150L Lab Roll Press Machine is a compact precision electric rolling press machine. It has dual rollers of 96 mm dia. x 150mm width and dual grade micrometre. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

Since the viscosity of battery electrode pasta/slurry plays an important role during the electrode coating on current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. Usually, the cathode slurry viscosity needs to be controlled in range of 6000-1000cp, and Anode slurry viscosity needs to be controlled in range of 1000-3000cp. MT-NDJ-5S Digital viscometer is with viscosity testing range from 10-100000cp, it can display the testing result in the screen directly without calculate. It is ideal viscosity testing equipment for lithium battery producing and lab research.

Various types of common battery powder and liquid mixing，eventually get a mixed uniform battery slurry. It is suitable for high viscosity process. Suitable for operating viscosity range ≤ 1.2 million cP

Automatic battery electrode coating machine with a compact footprint that is less than 6'x3'. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's the most convenience.

Dry electrode technology is currently one of the advanced manufacturing technologies for lithium-ion batteries, and the dry roller pressing process is the key to this process. Continuous dry rolling pressing equipment only needs to form a high-performance dry electrode film with high density and uniform surface by multi-stage rolling of mixed electrode raw materials, and then form a dense and uniform thickness electrode film by hot pressing with the collector.

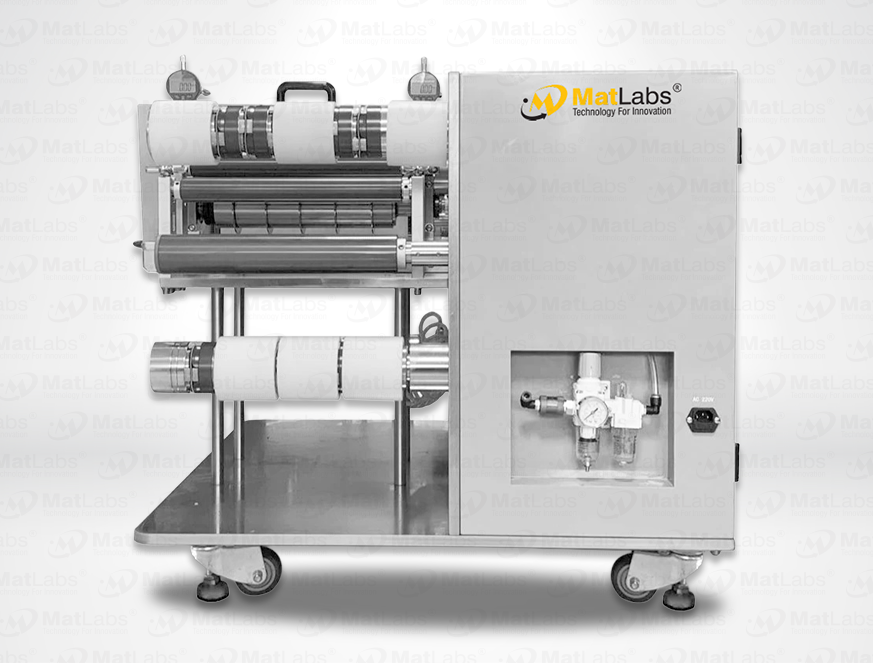

Roll To Roll Continuous Slitting Machine For Battery Electrode Cutting. It utilizes two or more continuous slitting processes for rolled materials. It is equipped with a precision knife holder, which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other functional film industries.

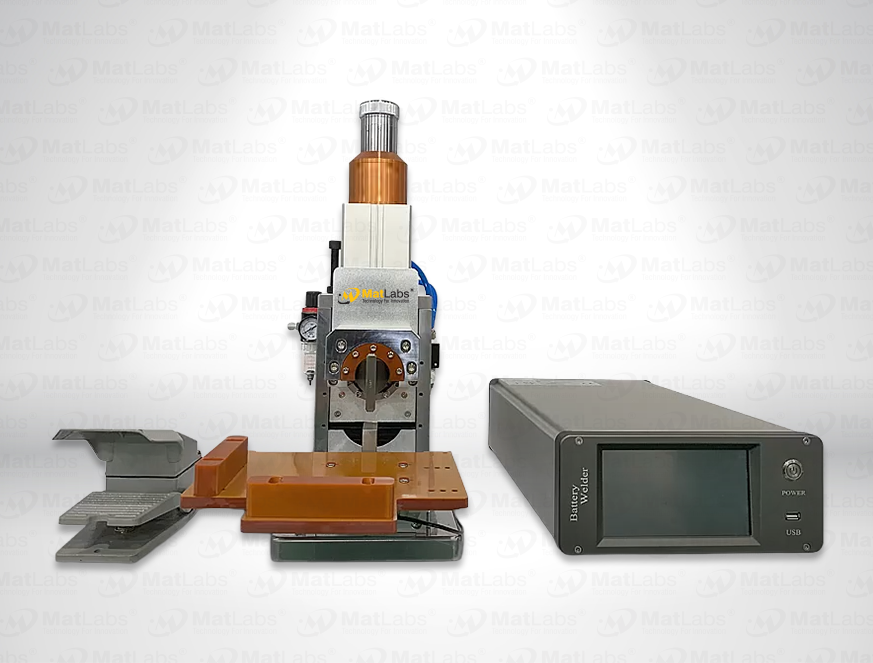

MT-VS-40A is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells. The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.

The Laser Welding System MSK-LW-S2000 is designed for the prismatic cell tab welding and top lid sealing. There are 2 working stages. One is for the prismatic cell current collector welding. The other one is for the prismatic top lid/cap sealing. The laser welding and sealing is the most critical step in the prismatic cell assembling procedure.

Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

The intelligent system of the Internet of Things can be installed to realize the mobile control and centralized management of the glove box, which is safe and secure. It has real-time synchronization of equipment status, equipment data report records, historical data can be inquired, alarm messages are actively notified, equipment remote debugging, fault online diagnosis and online repair, online customer service and other intelligent functions. 1.Control system: Siemens 2.PLC Purifier: single column 3.Water content: <1ppm 4.Oxygen content: <1ppm

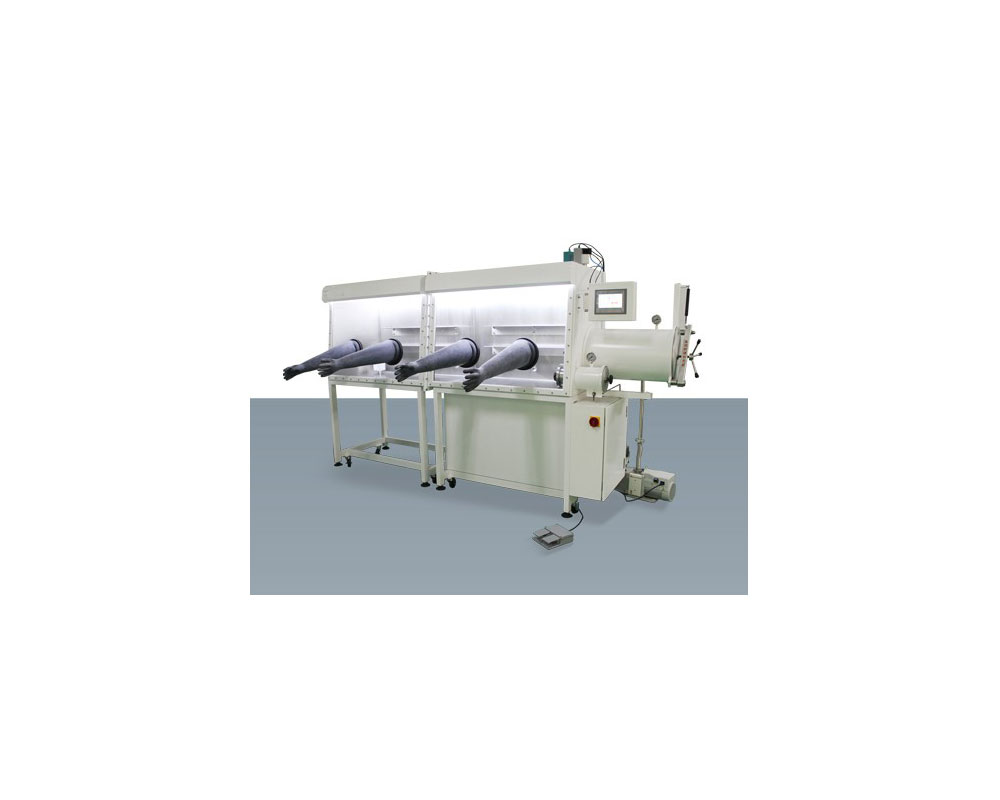

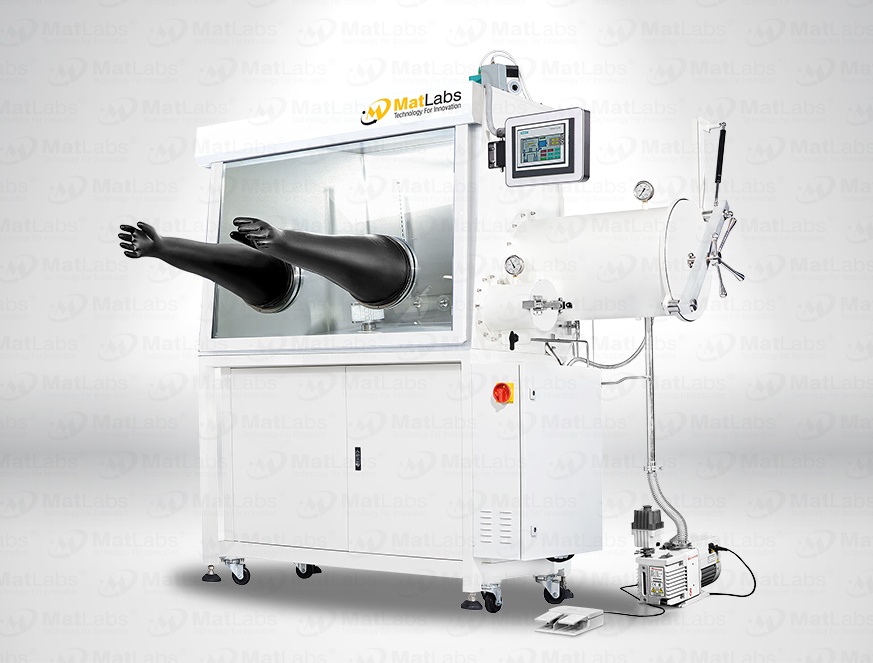

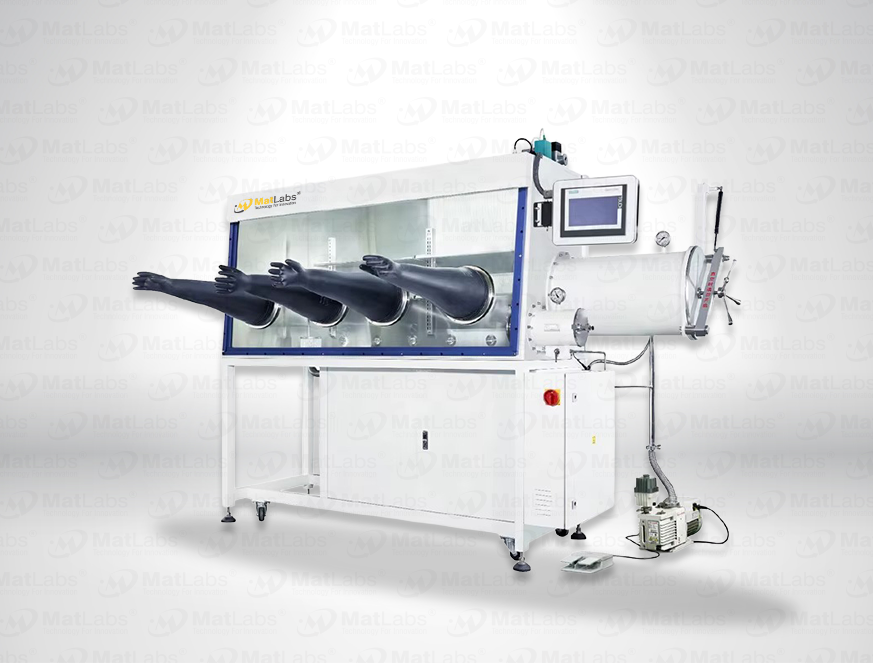

Lab2000 glove box is a set of high-performance, high-quality closed-loop working system that automatically absorbs water and oxygen molecules and purifies the working environment, providing an inert atmosphere of O2 and H2O≤1ppm that can meet your specific cleaning requirements. This system is an economical circulating purification system designed to meet customers' research and development.

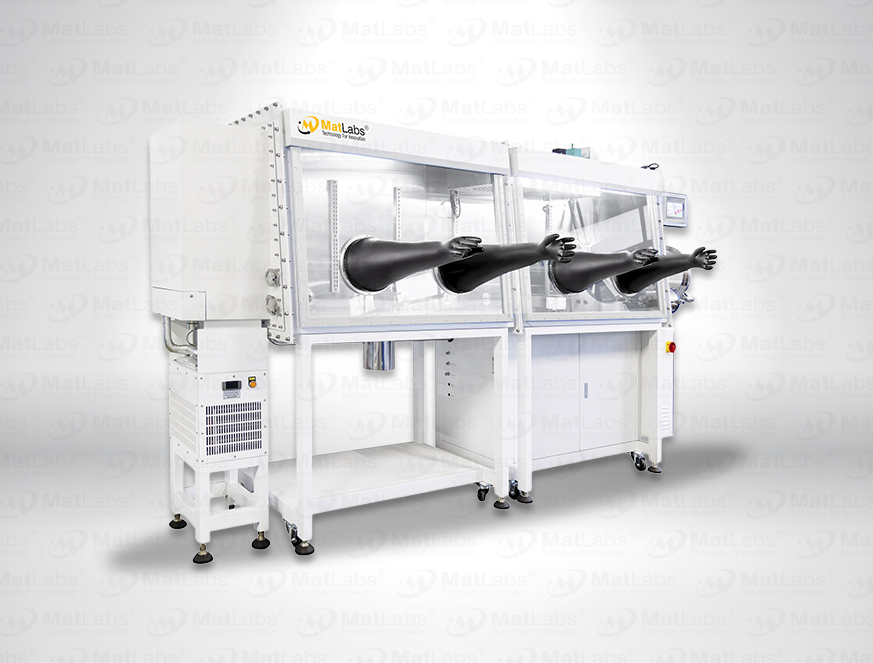

Model: 2440/750/900 Dual stations (4 ports), Single-sided operation, integrated single-column purification unit, PLC control and touch screen operation, vacuum pump, bracket, a closed box with inclined operation surface and detachable safety glass front window. Under standard conditions, that is, 20 °C constant temperature, a standard atmospheric pressure, 99.999% inert gas source, water and oxygen level less than 1 ppm

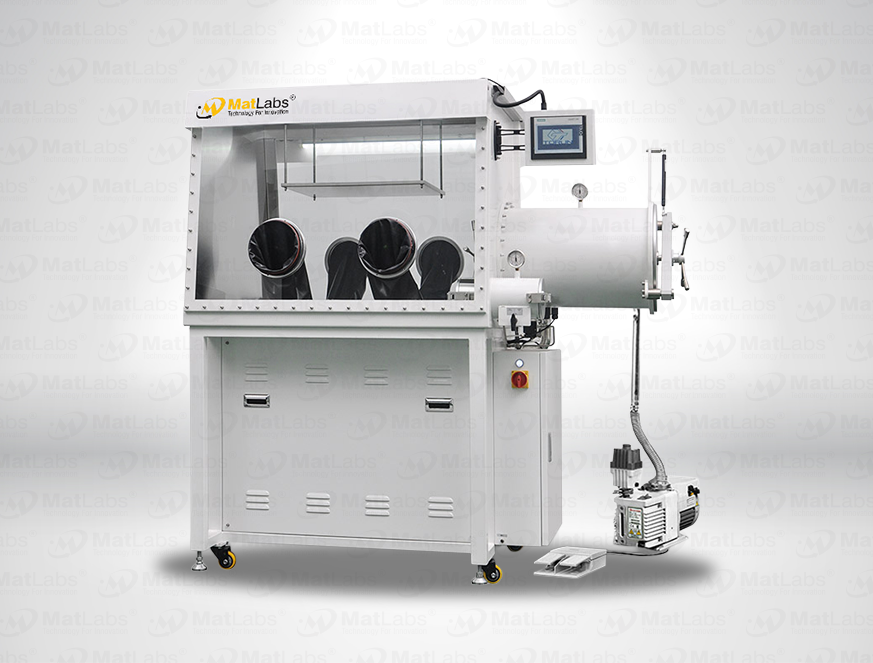

Model: 1220/1000/900 Dual stations (2:2), double-sided operation, integrated single-column purification unit, PLC control and touch screen operation, vacuum pump, bracket, a closed box with inclined operation surface and detachable safety glass front window. Under standard conditions, that is, 20 °C constant temperature, a standard atmospheric pressure, 99.999% inert gas source, water and oxygen level less than 1 ppm.

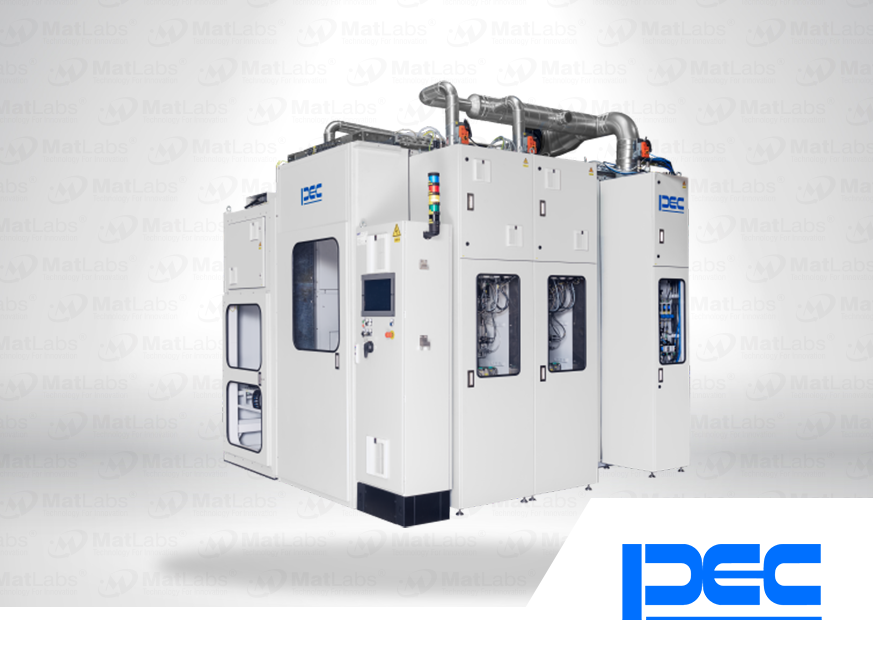

Electrolyte filling presents one of the key challenges in GIGA-scale, hardcase Li-ION cell production. As cell energy densities rise, achieving full electrode wetting becomes increasingly time-consuming and complex. In response, PEC has developed a unique, patent-pending Rapid Single-step Electrolyte Filling solution.

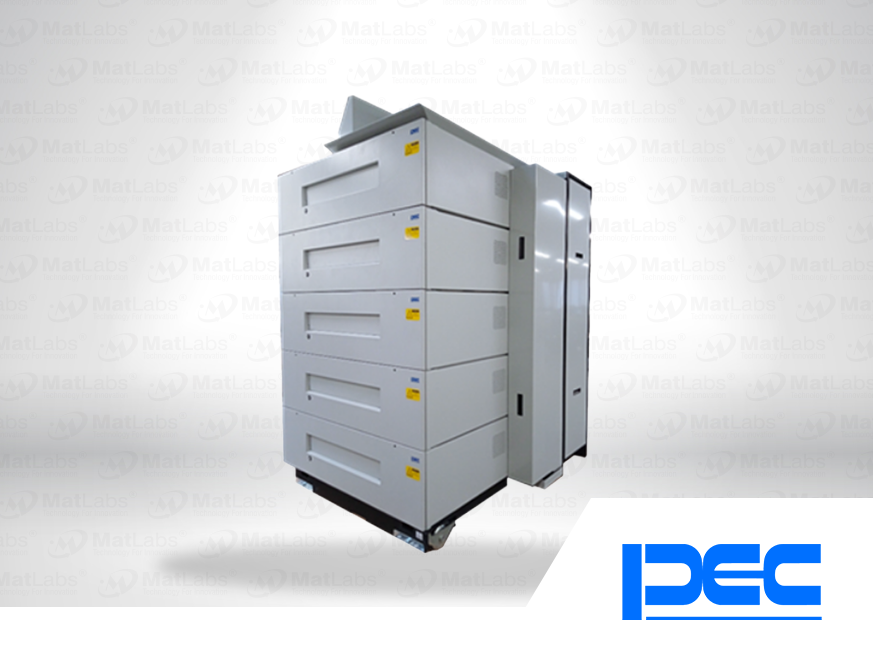

The core component of our system is the formation tower, essential for the electrical activation and testing of cells post-electrolyte filling. These towers perform charging and discharging cycles to develop a uniform SEI layer within the cells and assess key characteristics such as cell capacity, internal resistance, and peak performance.

IDEAL FOR: Testing and evaluating cells MOSTLY USED IN: High Volume Testing , Quality Control, Incoming Goods Inspection

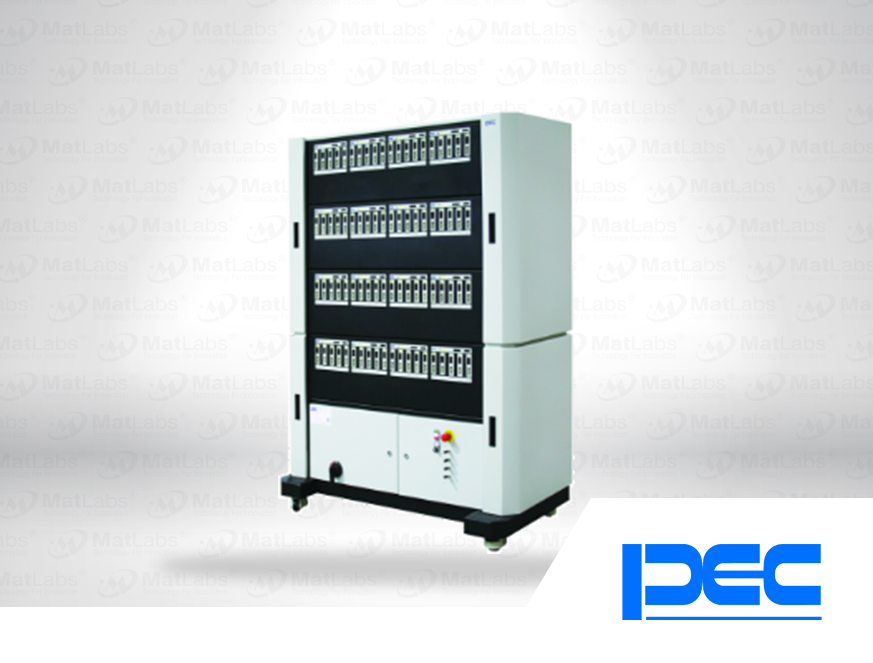

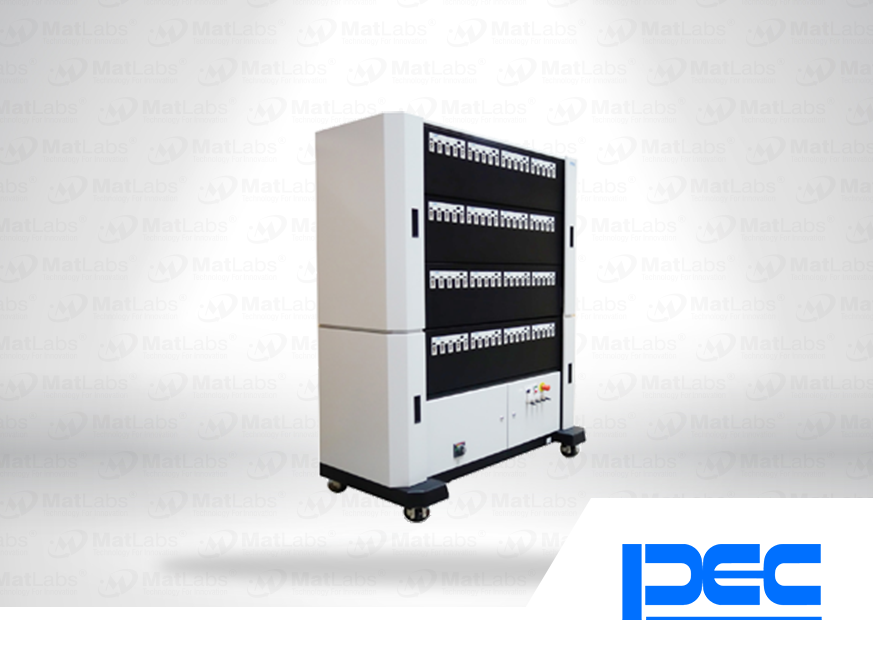

IDEAL FOR: High speed and accuracy demanding testing MOSTLY USED IN: (H)EV, solar, wind, grid and other energy storage solutions, R&D, Quality Control, Incoming Goods Inspection

IDEAL FOR: Testing and evaluating cells MOSTLY USED IN: High Volume Testing , Quality Control, Incoming Goods Inspection

IDEAL FOR: High volume testing multi-layer pouch, 18650, 21700 or 46XXX cells MOSTLY USED IN: Cell development and QC labs, Cell Formation, Quality Control, Lifecycle testing

IDEAL FOR: Low power tester for high volume testing R&D coin, single layer pouch or 18650 cells MOSTLY USED IN: Cell development and QC labs, Cell Formation, Quality Control, Lifecycle testing

IDEAL FOR: testing and evaluating batteries according to IEC60086-1/2 MOSTLY USED IN: R&D, Quality Control, Incoming Goods Inspection

IDEAL FOR: Testing and evaluating cells and batteries according to IEC285 MOSTLY USED IN: R&D, Formation, Ranking, Quality Control, Incoming Goods Inspection

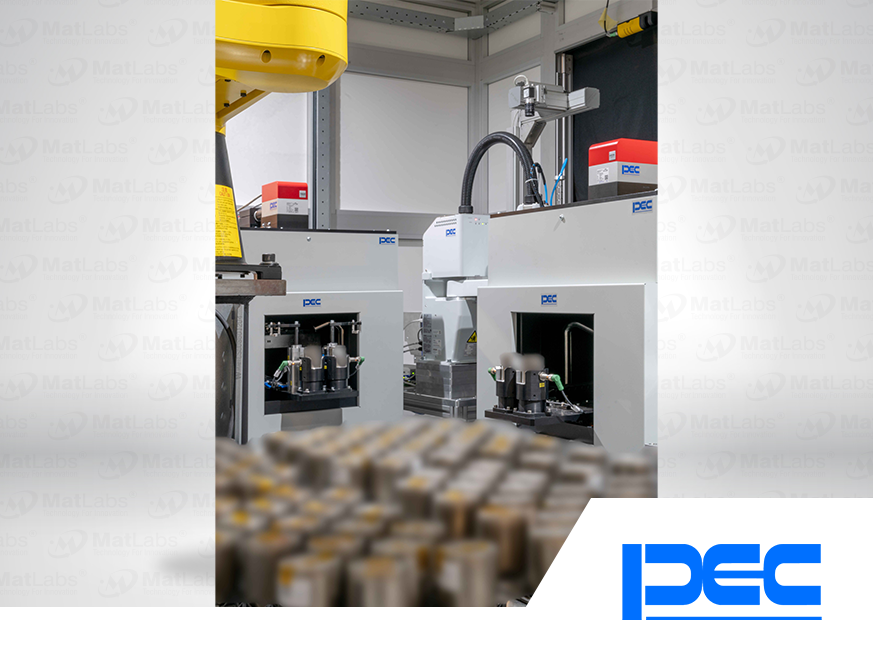

After Pre-Charge, the cells will be finally degassed, cleaned and sealed for further processing. An endcap will be laser welded over the filling hole, providing a clean and reliable closure of the cell. The machine is also part of the Cell Finishing Line, using a micro-dry environment inside the machine. This way we avoid the complex logistics of moving pallets between the main dry room and formation area. PEC’s proprietary laser welding technology provides minimum energy to the weld pool, reducing the area affected by heat.

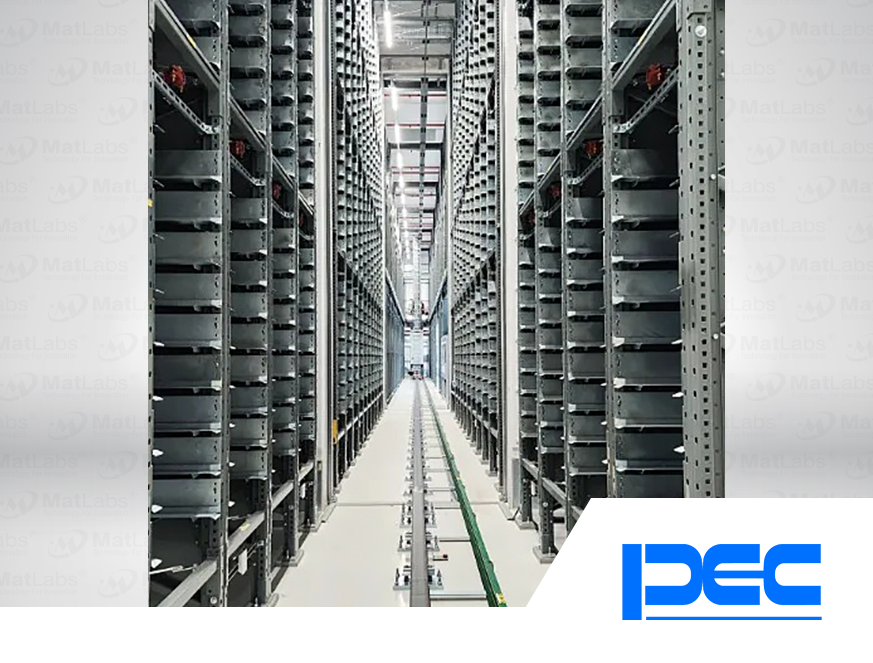

The equipment is positioned on both sides of an Automated Storage and Retrieval System (ASRS). The ASRS crane system will automatically transport the cells from one process step to the next until all process steps are finished and cells can be presented at the output conveyor.

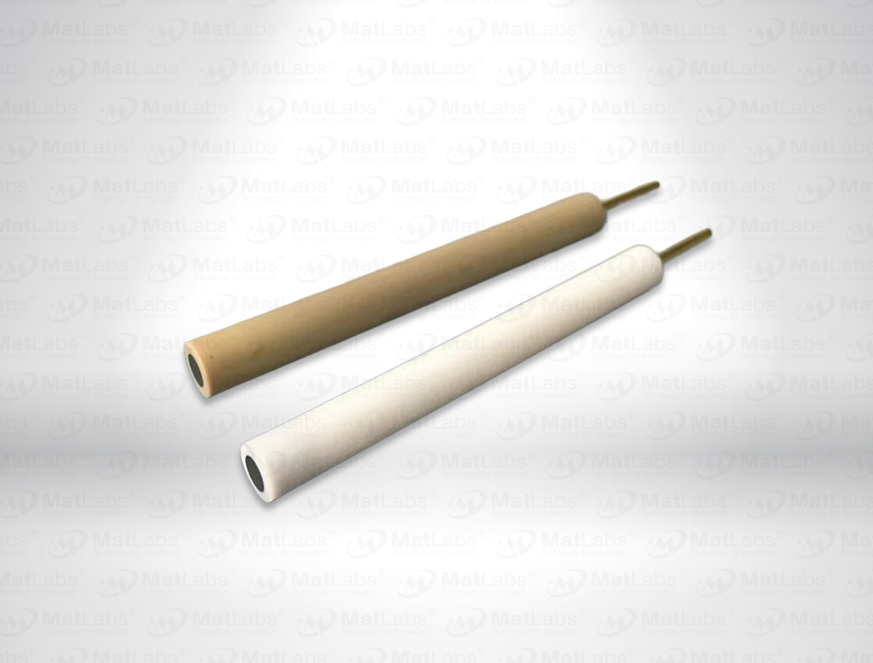

Matlabs offers a flexible selection of disc working electrodes featuring glassy carbon (1–20 mm), gold (0.5–6 mm), and platinum (0.5–6 mm) variants and many more. Ideal for techniques like cyclic voltammetry and differential pulse voltammetry, these discs provide a polished, inert surface conducive to high‑fidelity signal transduction. Available in a variety of sizes, they are suitable for low‑concentration analyses or high-current electrolysis experiments. Custom diameter options and tailored material selection ensure compatibility with potentiostats, rotating ring/disk setups, and custom cell geometries. Designed for seamless integration with standard electrode holders, they are widely used in laboratory research, sensor development, and corrosion studies.

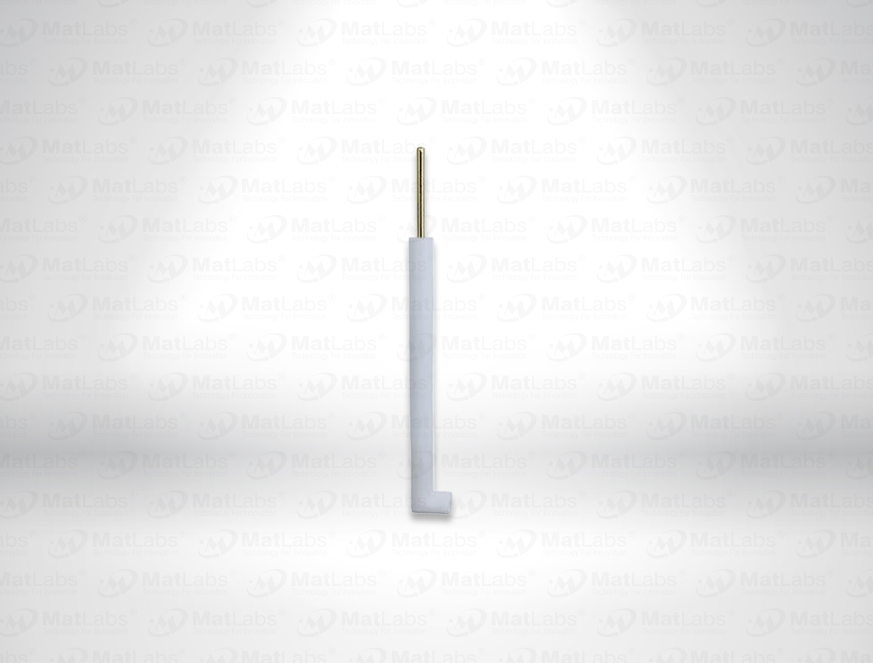

MatLabs offers L‑type working electrodes in glassy carbon or gold, with diameters of 2–5 mm. The distinctive L‑shape enables the working electrode surface to align parallel to the reference probe, improving spatial access and minimizing IR drop. This geometry is especially advantageous in cells with tight spacing or where precise potential control is vital. Materials are chosen for electrochemical stability, and custom sizes or coatings are available upon request. L‑type electrodes are invaluable in micro‑voltametric setups, Spectro electrochemical cells, and compact testing vessels requiring efficient reference-electrode access.

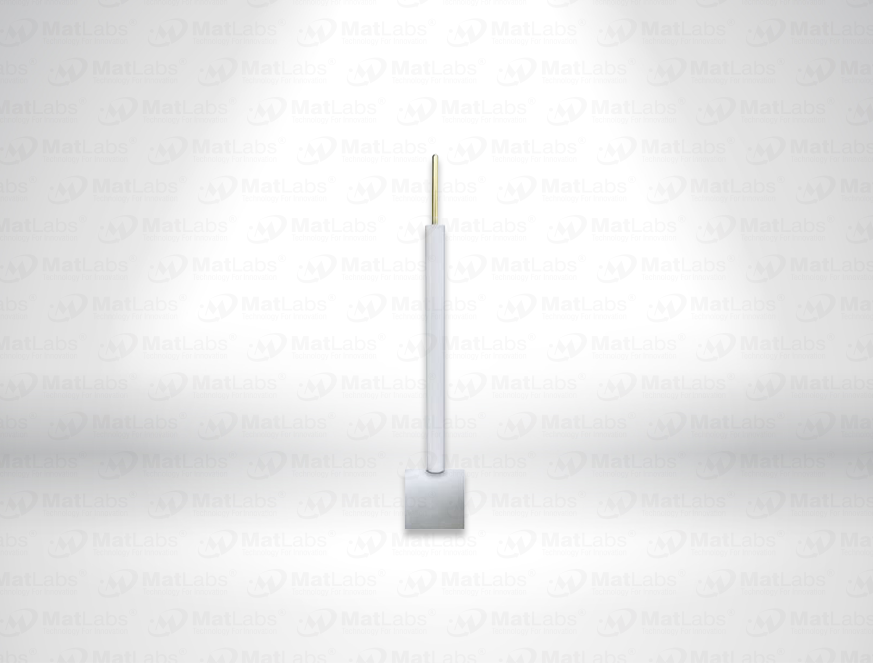

Our plate working electrodes feature durable rectangular geometries in glassy carbon or platinum, across dimensional options from 10×10×0.1 mm to 30×30×0.5 mm. Their flat, expansive surfaces make them invaluable for studies in corrosion, battery materials, and sensor screening. The sturdy design ensures compatibility with flow cells and planar test fixtures. Material choice, glassy carbon for chemical robustness and platinum for high conductivity, makes them adaptable to diverse experimental requirements. These electrodes suit applications where uniform current distribution and reproducible surface area are critical.

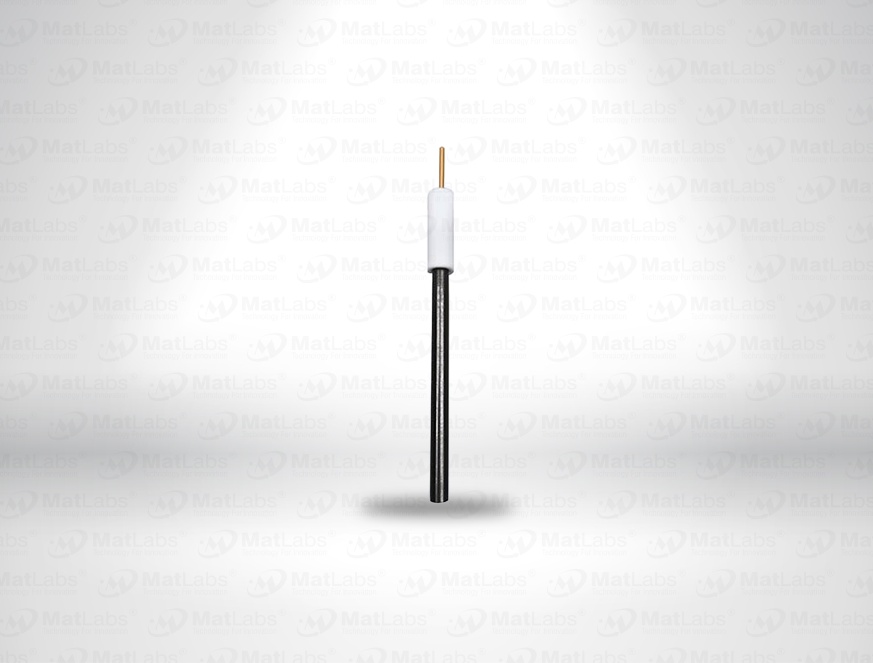

Precision-machined rod electrodes in glassy carbon/graphite (3-6mm diameters). 100mm total length with 80mm active rod. Ideal for immersion & extended electrochemical applications.

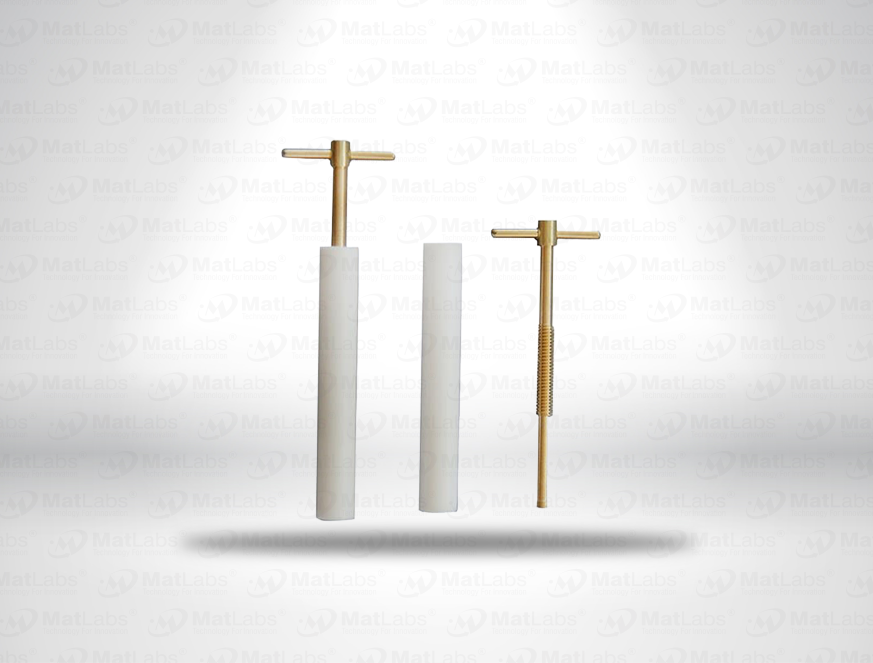

Renewable carbon paste electrodes (2-5mm diameter) with modifiable surface for biosensing & trace analysis. Cost-effective, fouling-resistant design perfect for analytical applications.

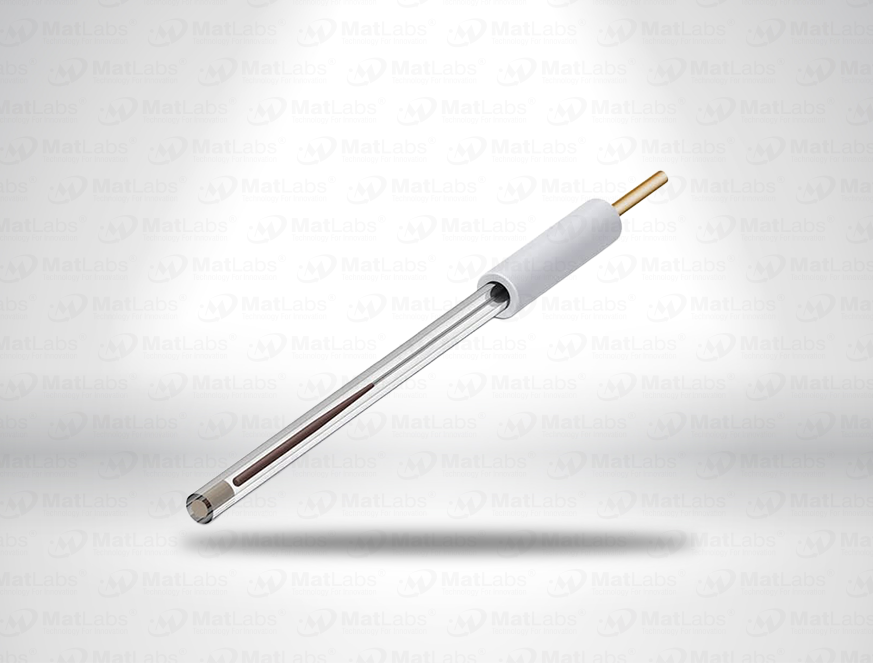

Silver/Silver Chloride Electrode provides stable, mercury-free +0.197 V vs SHE potentials in saturated KCl. Durable, refillable, ideal for corrosion, sensors & electrochemical research needing reliable reference standards.

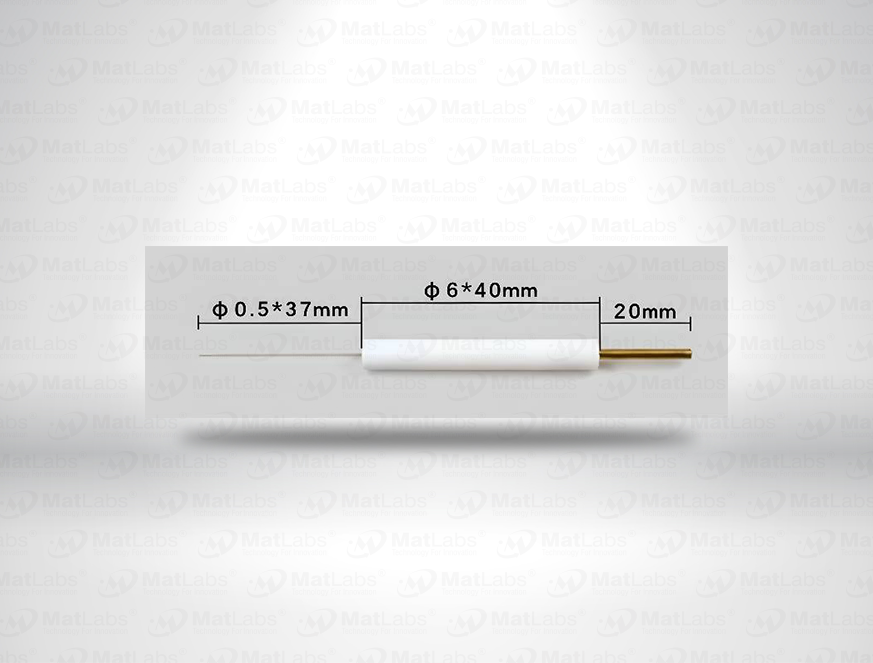

Silver Wire Pseudo Reference Electrode

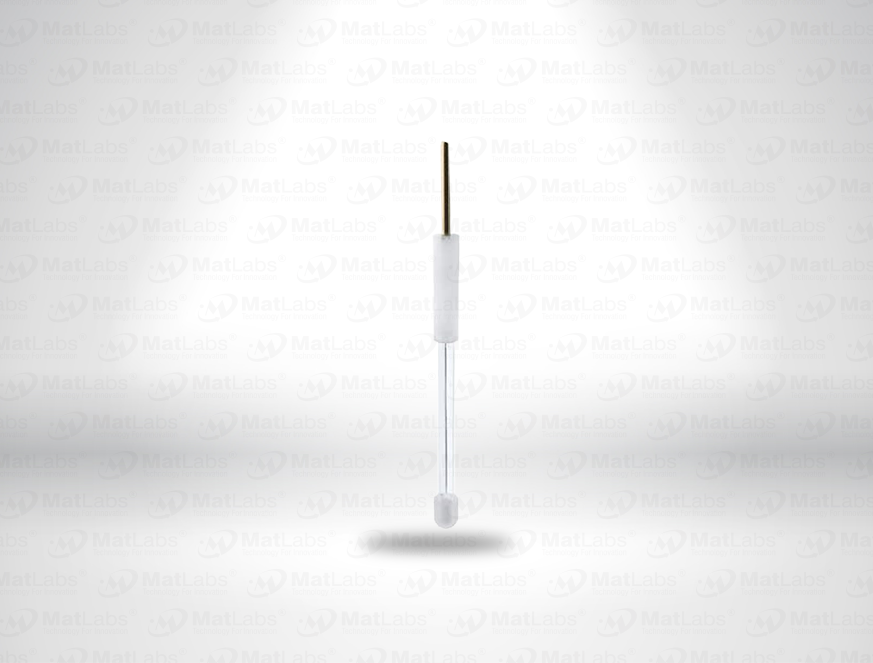

Non-aqueous Ag/Ag+ Reference Electrode, ideal for organic electrochemistry, provides stable, reproducible potentials in water-free conditions. Perfect for electrosynthesis and molecular studies with daily calibration recommended.

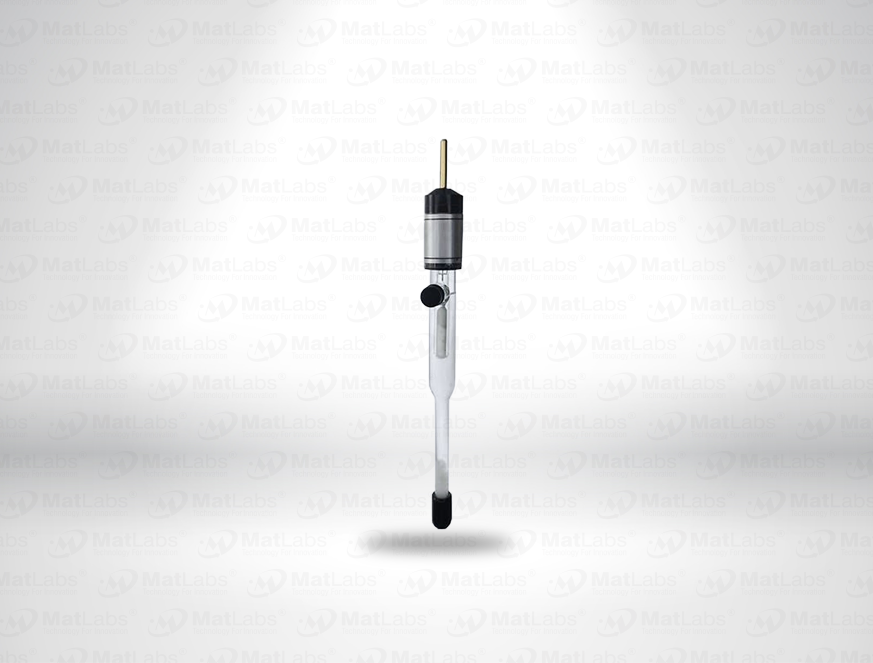

Saturated Calomel Electrode (SCE) ensures stable, reproducible reference potential for precise electrochemical measurements in labs, using mercury, calomel, and saturated KCl.

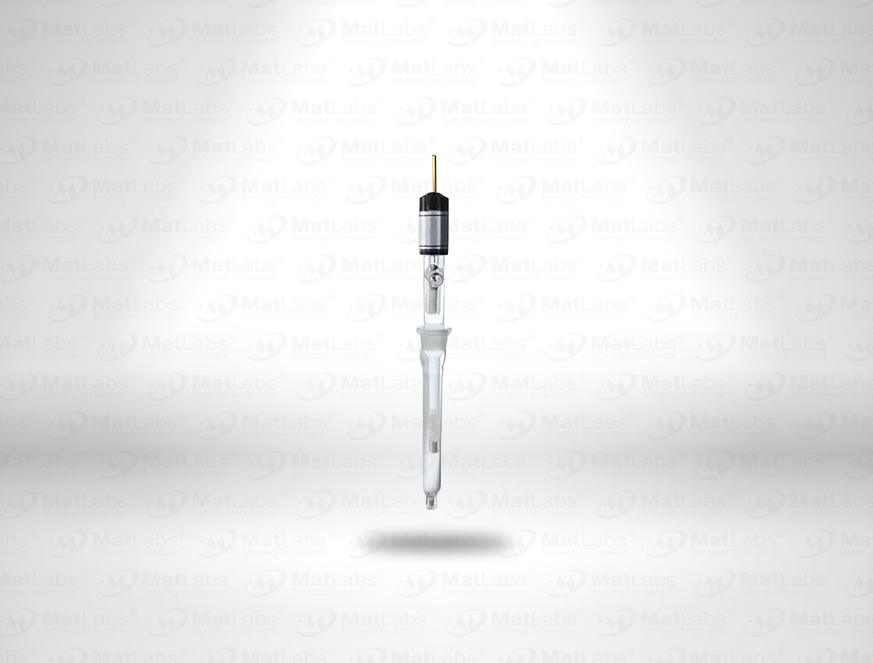

This double-junction Saturated Calomel Electrode features a second salt bridge that limits ion crossover, ideal for low-chloride and fouling-prone systems with stable SCE potential.

Hg/HgO Reference Electrode

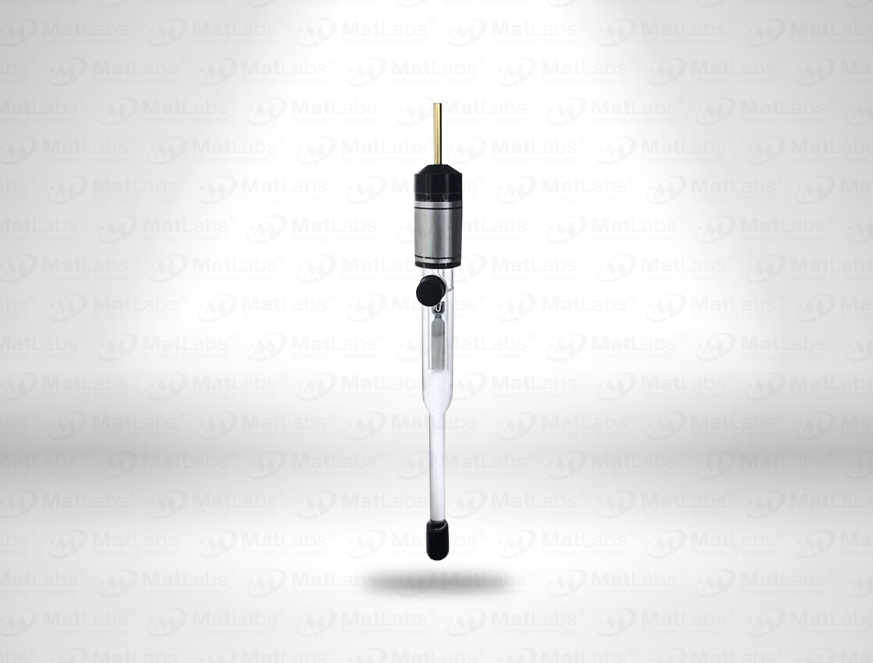

The Hg/Hg2SO4 reference electrode is a specialized electrochemical solution for chloride-free applications with acidic stability. This mercury/mercurous sulfate electrode provides reliable measurements for research/industrial use.

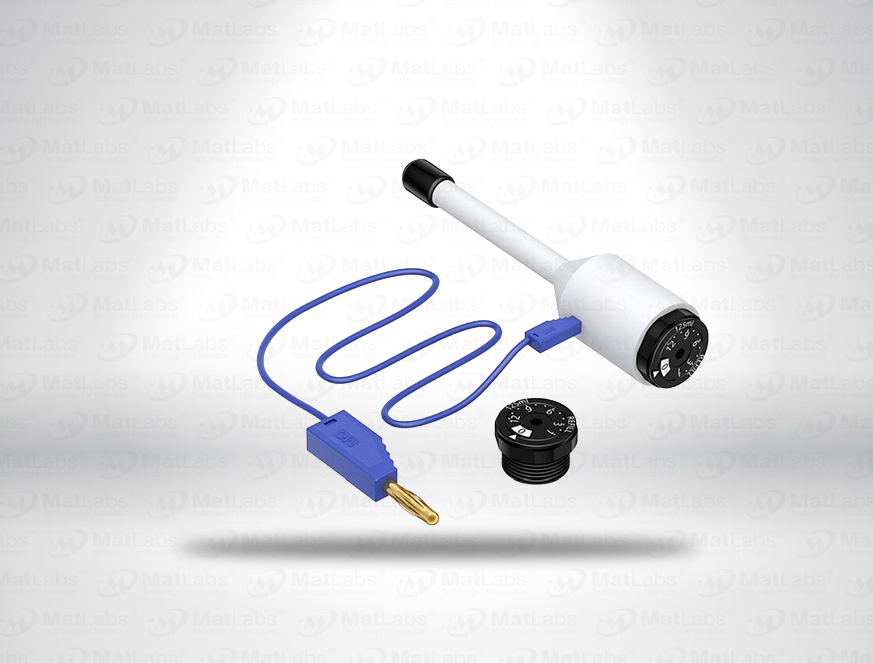

Reversible Hydrogen Electrode

The platinum wire electrode is used as the counter electrode/auxiliary electrode for electrochemical measurement dealing with half-cell reaction. Pt wire counter electrode is often used with our cell stand for experiments in electrochemical analysis.

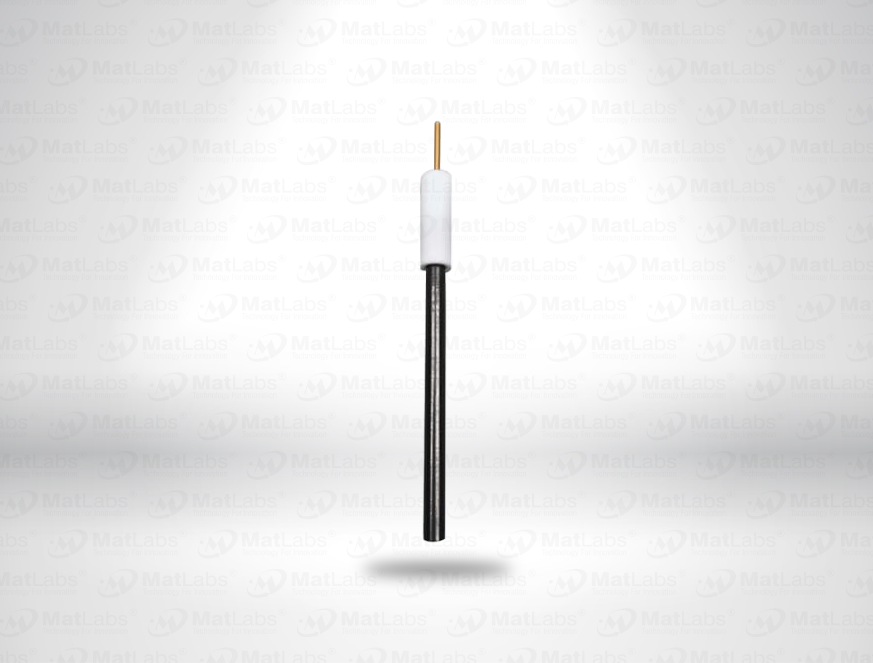

Details of Graphite Rod Counter Electrode (We can also make this in copper, stainless steel, glassy carbon, nickel etc)

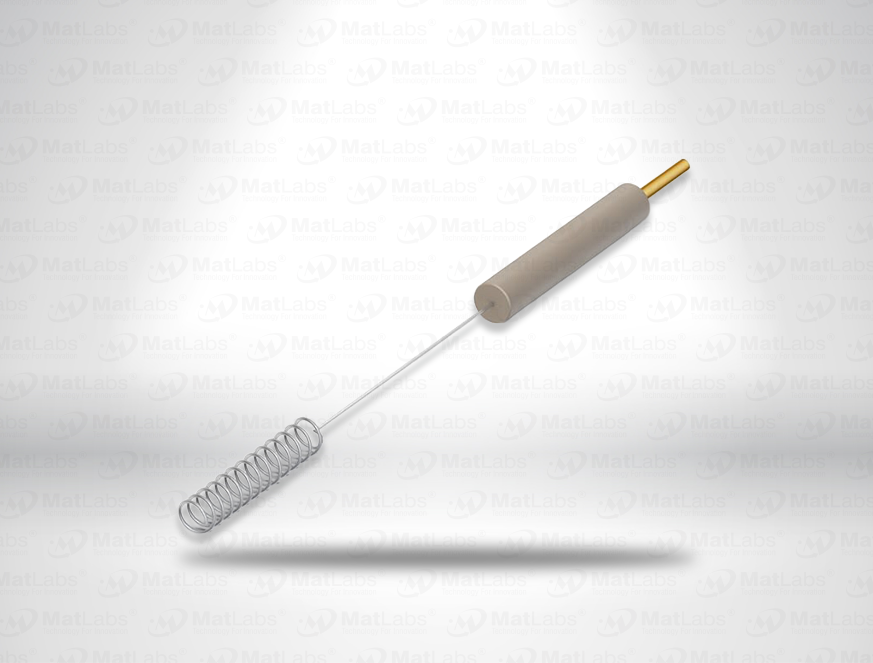

This electrode contains a coiled platinum wire fused in a glass tube. It is used as counter/auxiliary electrode in many electrochemical measurements involving three-electrode cell systems. Coiled Platinum electrodes are available in two sizes and are compatible with all electrochemical cell systems.

Platinum plate electrodes can usually be used as auxiliary/counter electrodes for various electrochemical measurements in three-electrode cell-system. Platinum is the first choice for counter electrode for many electrochemical applications due to its inertness and stability in different electrolyte. Compared to mesh and wire-type, platinum plate electrode has higher surface area to match and support the current generated on the working electrode in any chemical reactions. Due to platinum plate electrode’s resistance to oxidation, it is an excellent choice for anode in several electrochemical processes, such as the electrolysis of an acetate salt to give ethane and carbon dioxide. It is also used in several industrial application like cathodic protection and electroplating. Their stability in harsh environment provides accurate results.

This electrode is used a s counter/auxiliary electrode for electrochemical measurements in half-cell reactions. This electrode contains a platinum mesh attached with platinum wire mounted in a glass tube.

The output current in an electrochemical system is obtained across working electrode and counter electrode, on application of voltage across the working electrode and the reference electrode. The platinum gauze electrode acts a counter/auxiliary electrode with high exposed surface area for the occurrence of the electrocatalytic process.

Suitable for plate specimen with thickness:< 1mm.(customized cliping thickness is acceptable)

Suitable for plate specimen with thickness:< 1mm.(customized clipping thickness is acceptable)

Suitable for plate specimen with thickness:< 1mm.(customized clipping thickness is acceptable)

Suitable for plate specimen with thickness:< 1mm.(customized clipping thickness is acceptable)

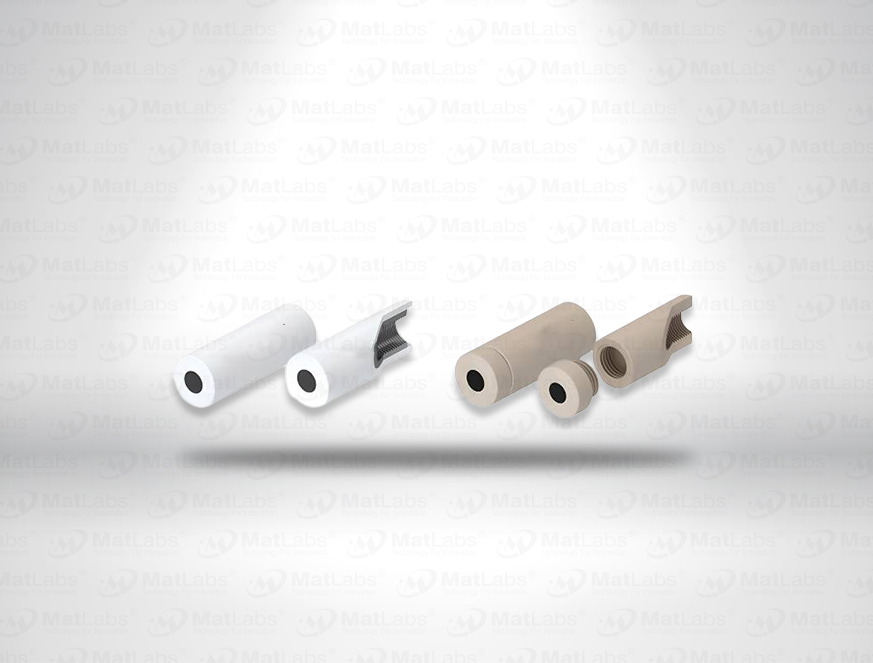

GC Rotating Disk Electrode (RDE) The Glassy Carbon Rotating Disk Electrode (GC RDE) from ScienceGears is designed for high-precision kinetic and mechanistic electrochemical studies under controlled hydrodynamic conditions. The inert and smooth glassy carbon surface ensures excellent reproducibility, low background current, and chemical stability across a wide potential window, making it ideal for both aqueous and non-aqueous systems.

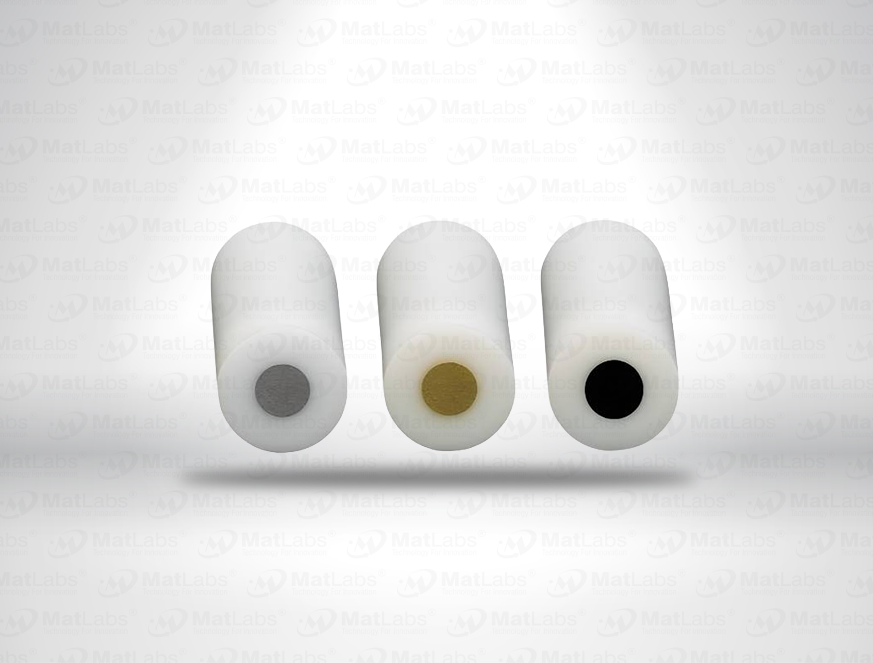

Au Rotating Disk Electrode (RDE)

Au Rotating Disk Electrode (RDE)

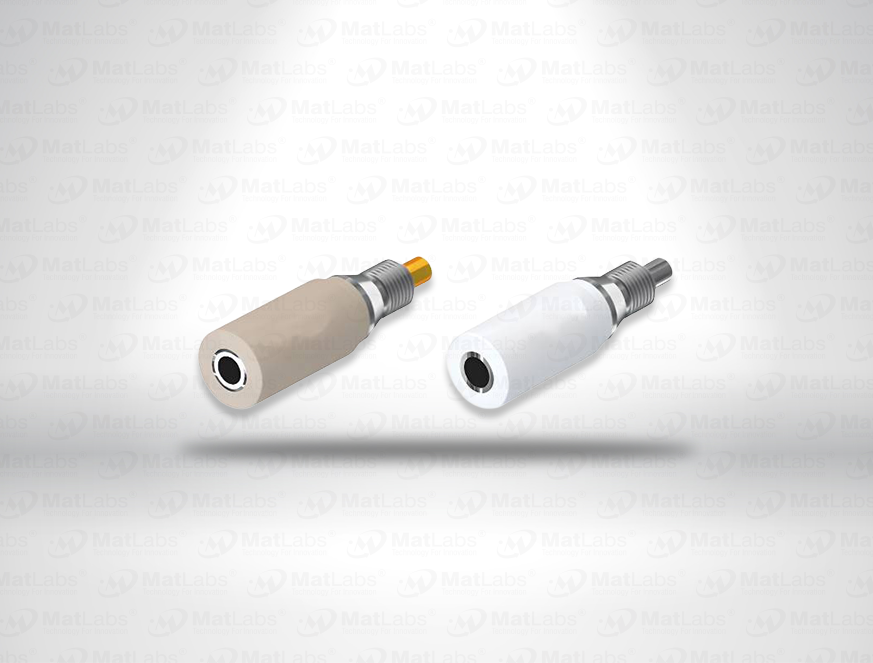

GC–Pt Rotating Ring-Disk Electrode (RRDE)

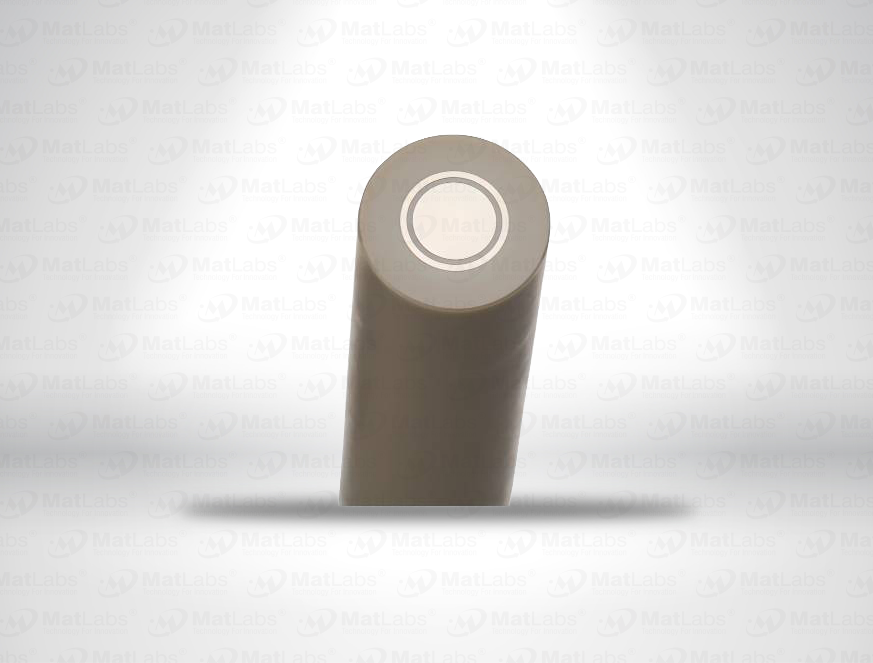

Pt–Pt Rotating Ring-Disk Electrode (RRDE)

GC–GC Rotating Ring-Disk Electrode (RRDE)

Au–Au Rotating Ring-Disk Electrode (RRDE)

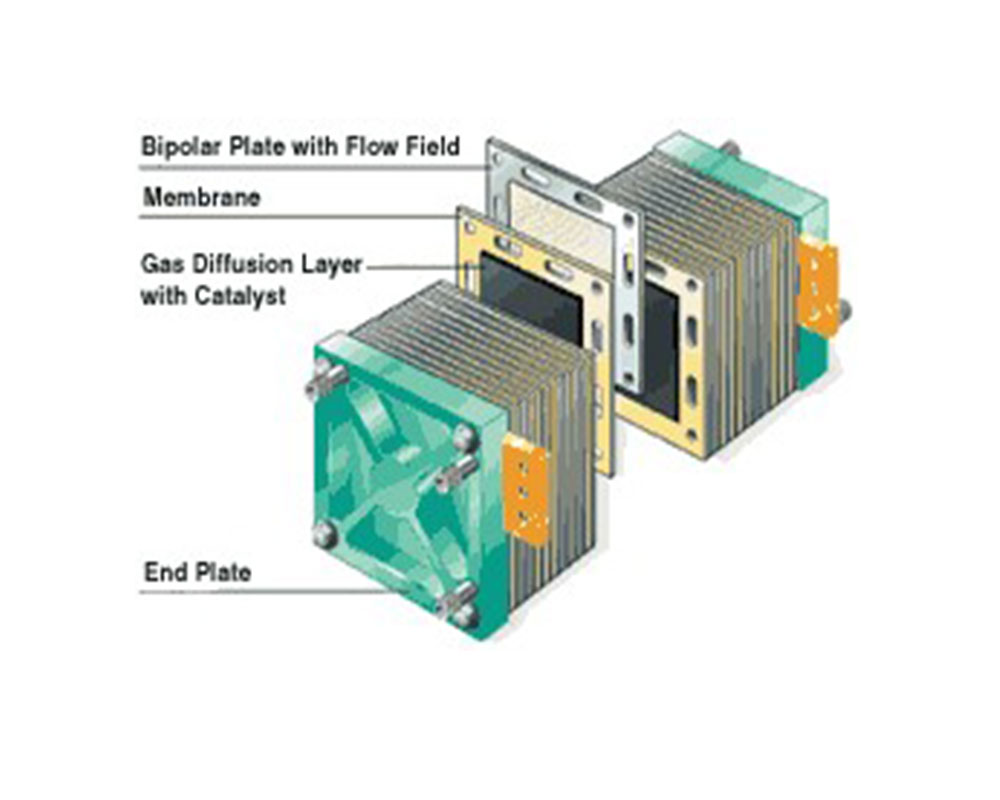

Metal Bipolar-plate MEA Electrolytic Cell (Titanium) Built around high-purity metal plates (typically titanium), this MEA cell emphasizes electrical/thermal conductivity and mechanical strength for sustained operation at elevated current densities. Standard active areas include 10×10, 20×20, 30×30, and 50×50 mm with serpentine or parallel channels; gold-plated copper collectors are available in selected configurations to reduce contact resistance. Hardware options include double O-ring sealing and ports for temperature monitoring or heating, enabling tightly controlled test conditions for alkaline AEM electrolysis, PEM studies, and CO2RR. The modular architecture supports swapping channel plates or materials (e.g., nickel variants for specific chemistries) to align with durability and corrosion-resistance goals. This platform is ideal for researchers comparing catalyst layer performance across load cycles or optimizing water/gas management under practical current densities.

Bipolar-plate MEA Electrolytic Cell (Graphite) This MEA test fixture uses isostatic graphite flow plates to deliver chemical stability and uniform current distribution across the active area. Standard flow field sizes include 10×10, 20×20, 30×30, and 50×50 mm, with custom geometries available to match your study. Serpentine and multi-channel options support systematic evaluation of mass transport, pressure drop, and water management. Designed for reproducible compression and sealing, the cell accommodates PEM or AEM membranes for a broad range of studies. Typical applications include electrochemical CO2 reduction (catalyst screening, selectivity mapping) and alkaline anion exchange membrane water electrolysis. The robust frame and gasketing approach help minimize leakage and ohmic loss, while modular plates allow quick reconfiguration between experiments. Pair the cell with a potentiostat/galvanostat and gas handling to build a flexible, lab-scale platform for advanced electrocatalysis research.

Visual Membrane Electrode Electrolytic Cell This visual MEA cell integrates optical windows on both anode and cathode sides for in-situ observation and high-speed imaging—ideal for diagnosing gas evolution, flooding, and channel utilization under realistic operating conditions. The bipolar and guard plates are fabricated from high-purity titanium for conductivity and structural rigidity. Standard flow-field sizes span 10×10 to 50×50 mm, with common geometries including serpentine (cathode) and multi-parallel (anode) to probe distribution effects. The assembly provides stable compression of PEM/AEM membranes and leak-tight sealing for reproducible measurements across load cycles. Use it to correlate electrochemical performance with visible two-phase flow, bubble dynamics, and transport phenomena—accelerating optimization of catalyst layers, GDLs, and operating protocols.

Interchangeable-Channel MEA Electrolytic Cell Designed for rapid flow-field experimentation, this MEA cell uses high-purity PTFE bipolar plates for exceptional corrosion resistance. Researchers can interchange channel geometries—commonly serpentine—to study mass-transport and flooding behavior under identical operating conditions. Standard active areas include 10×10, 20×20, 30×30, and 50×50 mm, supported by titanium clamping hardware for strength and durability. The sealing design is optimized for repeatable compression of PEM or AEM membranes, and the modular plate system enables fast reconfiguration without compromising leak-tightness. Ideal for CO2RR, water electrolysis, and general electrocatalysis, the cell provides a flexible platform to screen catalysts, gaskets, and diffusion layers while keeping the cell body constant.

Unsealed glass electrochemical cell with PTFE lid and gas inlet/outlet ports

Sealed Electrochemical Cell

PTFE Electrolytic Cell – all-PTFE reactor with sealed lid for inert electrochemical applications

Jacketed Sealed Glass Cell – double-wall glass cell with PTFE lid

5-Port Electrolytic Cell – glass cell with five PTFE ports for electrodes and gas lines

Jacketed 5-Port Electrolytic Cell – double-wall glass reactor with five ports and PTFE seals

Turnkey MEA Complete Package — All Components Included

Open-Access Dual-Compartment Glass Membrane Cell

Gas-Tight Dual-Compartment Glass Membrane Cell

Temperature-Controlled Dual-Compartment Glass Membrane Cell

Gas-Tight Jacketed Glass PEC Cell with Quartz Window

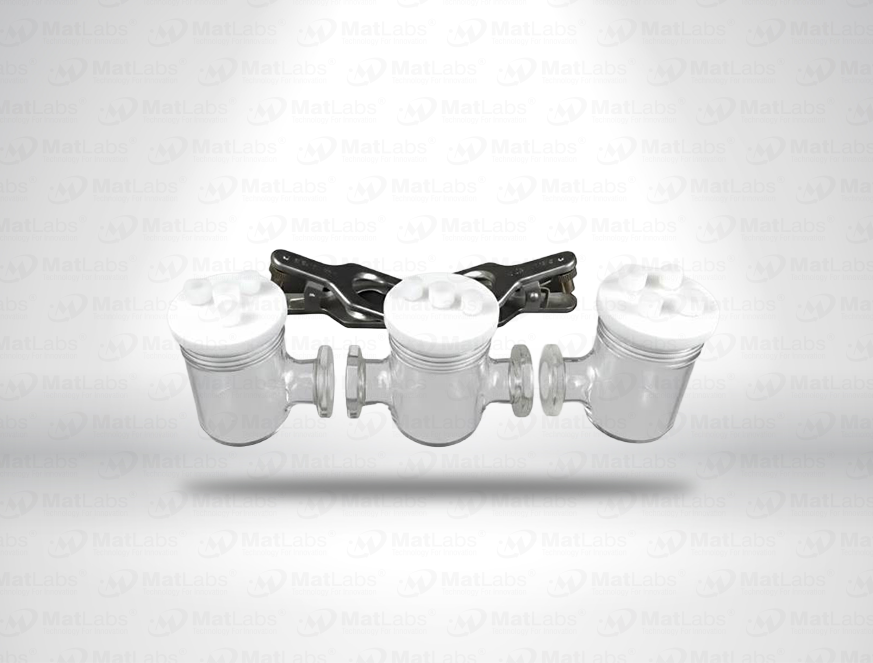

Three-Chamber H-Cell – Gas-Tight Electrochemical Cell

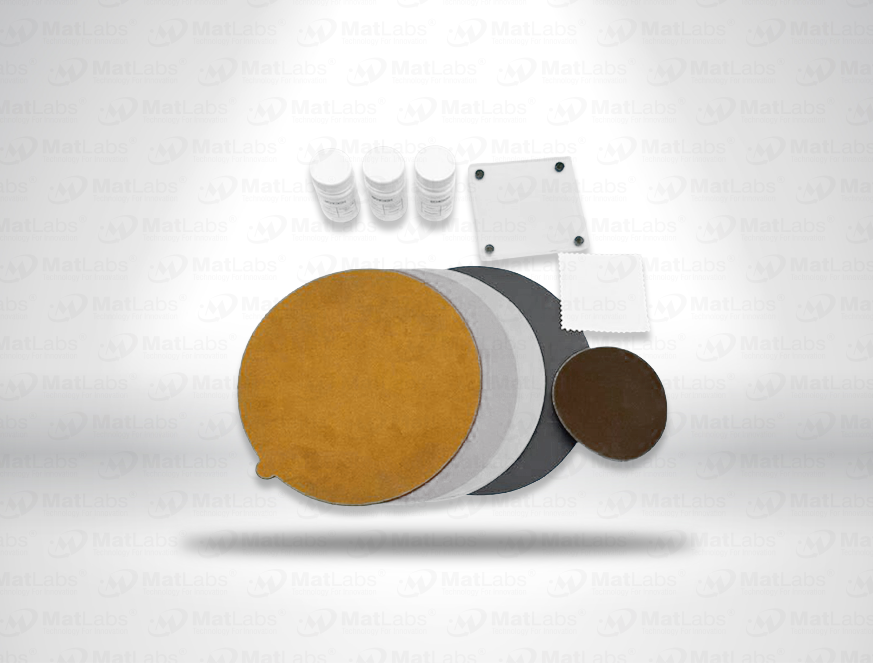

A full set Electrode Polishing Kit This complete Electrode Polishing Kit streamlines surface renewal for disk-type working electrodes, helping you recover clean, reproducible electrochemical responses prior to CV, LSV, DPV and EIS. The set includes two 100 × 100 mm glass bases for flat, stable polishing; three alumina grades (1.0 µm, 0.3 µm and 0.05 µm, 20 g each) to execute a reliable coarse-to-fine sequence; five velvet and five microcloth pads to match abrasive step and finish; plus five 2000# and five 3000# abrasive papers for initial corrective work on stubborn films or scratches. Following an industry-standard workflow, users typically begin (only when needed) with very fine paper, then step through 1.0 µm → 0.3 µm → 0.05 µm alumina, rinsing well and using separate pads at every stage to avoid cross-contamination. This approach is widely recommended to maintain planarity and achieve mirror-like finishes on glassy carbon, platinum and gold electrodes, supporting consistent electron-transfer kinetics and low background currents. Applications span electrocatalysis (HER/OER, CO2RR), corrosion studies, battery and fuel-cell R&D, and electrochemical sensing—any workflow where surface state drives kinetics and data quality. The kit pairs well with standard disk electrodes (including RDE/RRDE tips) from leading suppliers and fits seamlessly into routine lab maintenance.

It is a metal structure that protects the interference of external electric field and electromagnetic waves with the experiments carried inside the cage. The outer body of the cell is grounded. For doing the experiment the electrochemical cell has to be placed in the center of the cage. Those are experiments that deal with low currents or high frequencies, and experiments where very precise (and accurate) measurements are required, Faradays cage can be used.

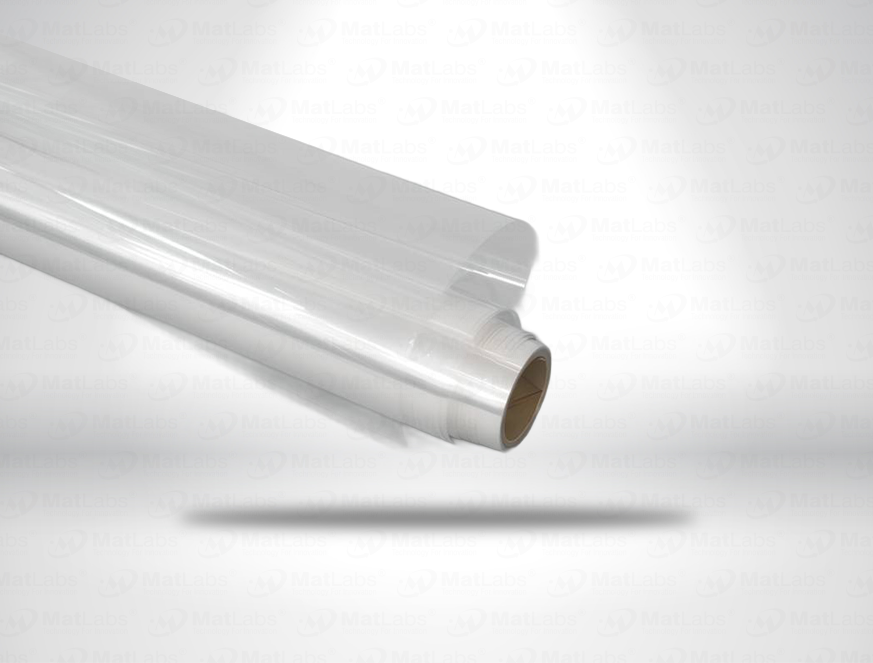

Nafion 115 Proton Exchange Membrane – 127 µm

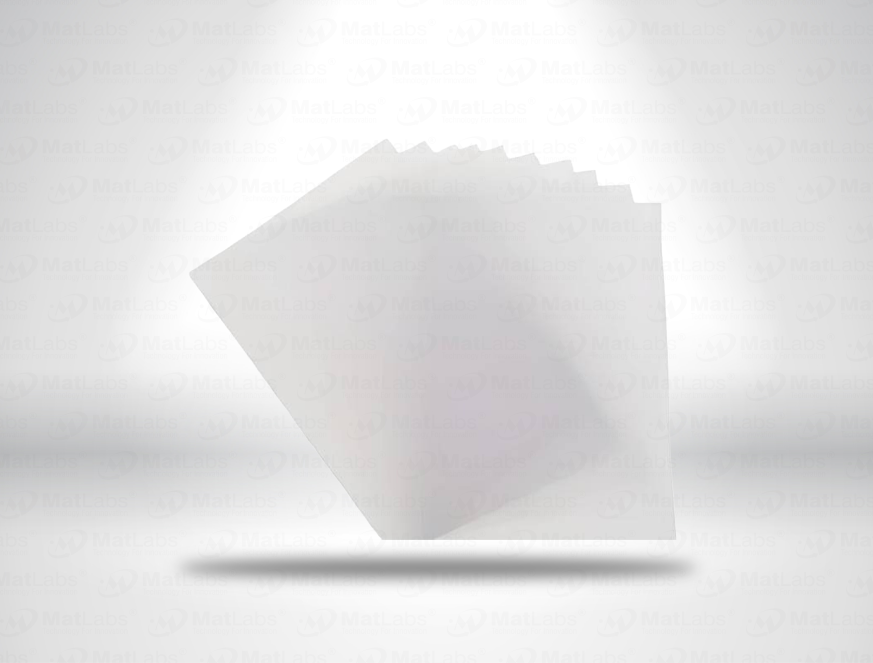

Nafion 117 Proton Exchange Membrane – 183 µm

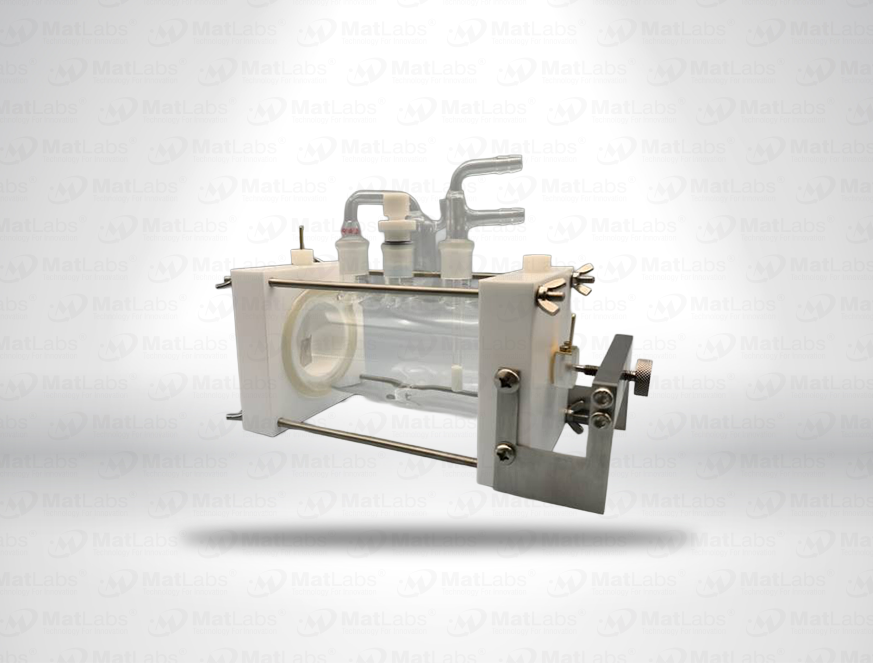

Flat corrosion cell with modular borosilicate chamber and PTFE/stainless parts. Supports planar metal coupons. Multi-port top allows reference and counter electrodes, gas inlet, optimized for reproducible EIS/dc measurements.​

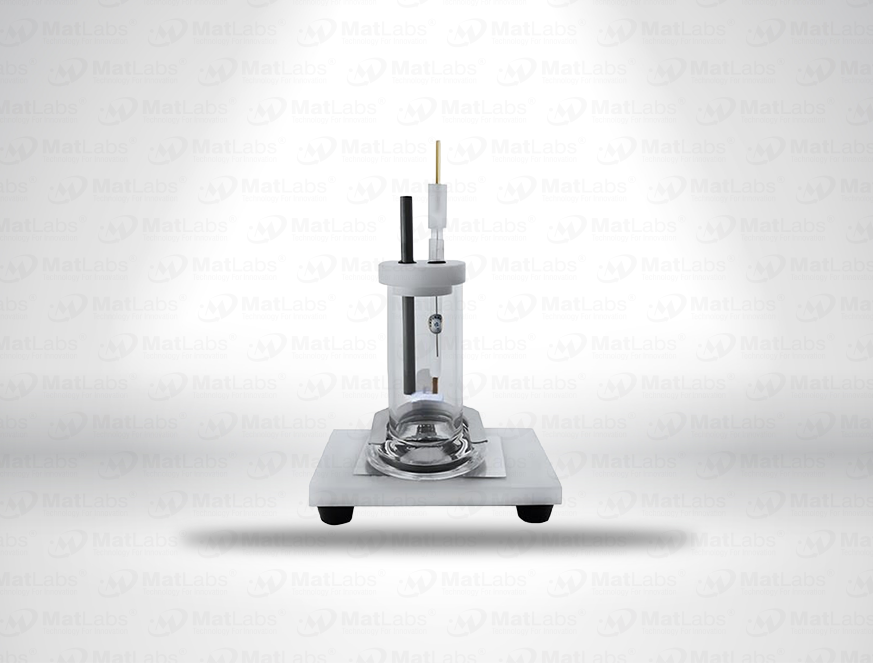

Localized corrosion cell for coatings: seals defined test areas on metal sheets, available in 50 ml and other volumes. Supports rapid paint studies and inhibitor screening with reference/counter electrode ports.

Jacketed flat corrosion cell enables precise, temperature-controlled tests on planar coupons. Multi-port design fits reference, counter, and gas electrodes. Ideal for DC polarization and EIS studies.

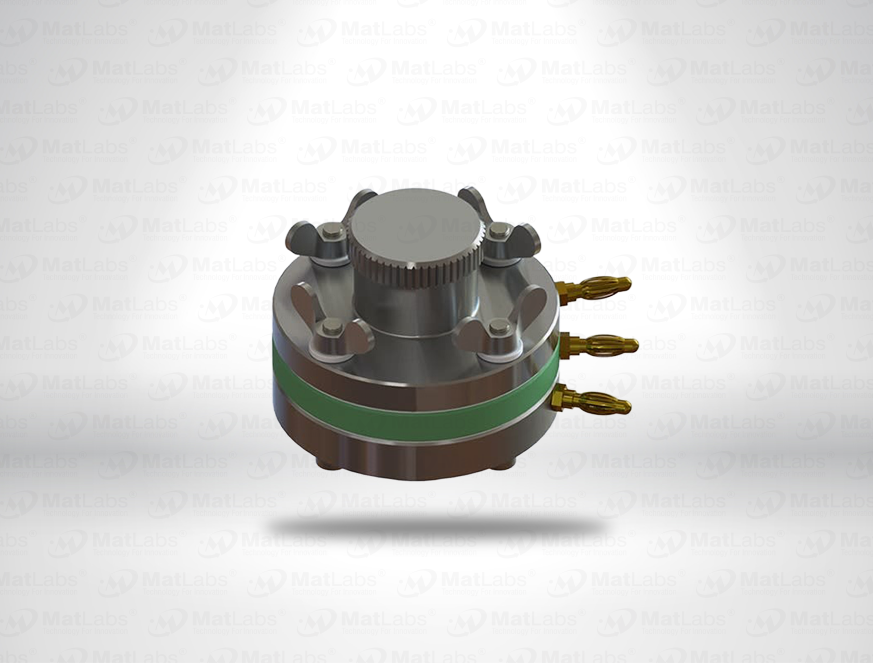

The Battery Test Cell is a reusable electrochemical platform for in-situ analysis of rechargeable battery materials. It replicates coin/pouch environments with precision sealing enabling charge-discharge cycling, impedance testing and OCP monitoring.

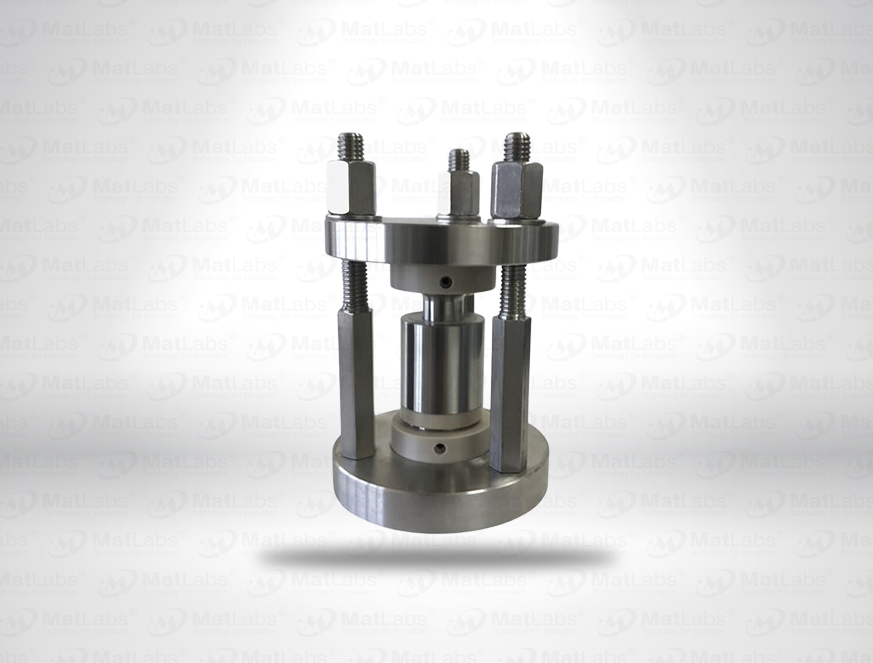

The Solid State Battery Test Cell evaluates solid-state electrolytes and electrodes under controlled mechanical pressure. Stainless steel with PEEK/PTFE insulation and screw-nut compression supports φ16mm stacks, EIS, charge–discharge and in-situ te.

The Zinc Air Battery Test Cell enables metal-air system research using zinc anodes and ambient oxygen cathodes. Stainless steel with PTFE/PEEK insulation, air inlet, and O-ring sealing supports φ16mm electrodes for ORR/OER catalyst and cycle testing.

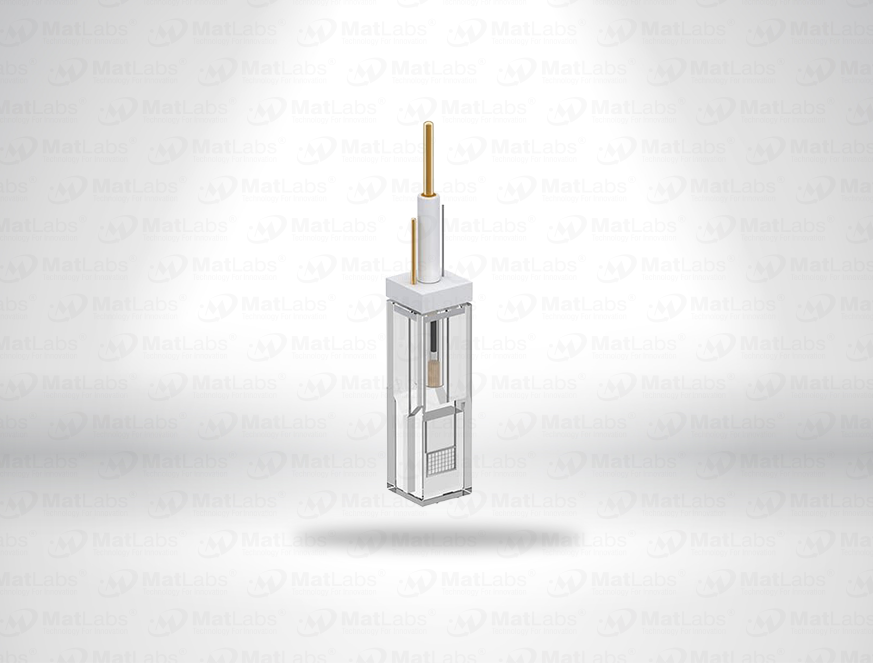

Spectroelectrochemical Cell – quartz cuvette-style cell with transparent optical windows and electrode ports

In-Situ Raman Spectroelectrochemical Cell

In-situ Raman Spectroelectrochemical Cell; Optical Window dia.:25mm
